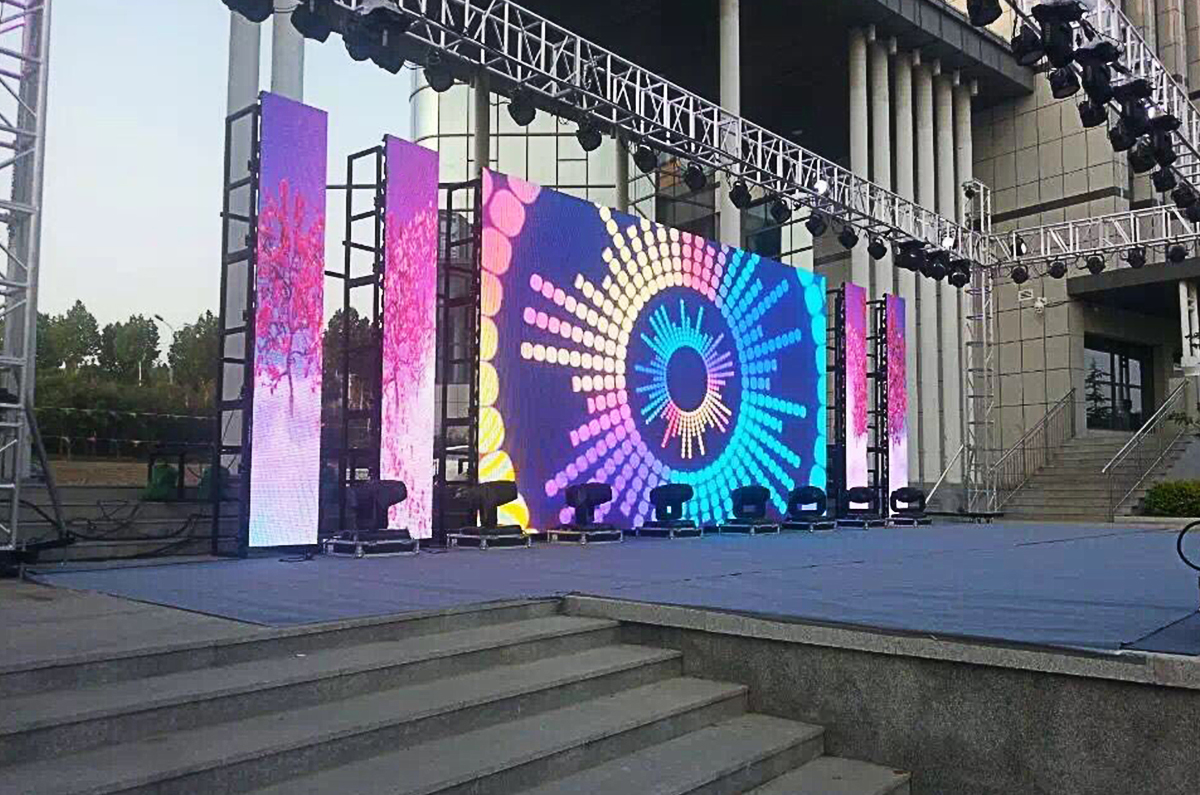

Outdoor Rental Stage Event Led Display P2.976 Stage Outdoor Rental Led Display Panel is an excellent choice for anyone looking for a high-quality LED Display panel for outdoor events. Its combination of high image quality, durability, and ease of use make it an ideal choice for rental applications. Outdoor Concert Stage Background Wall.

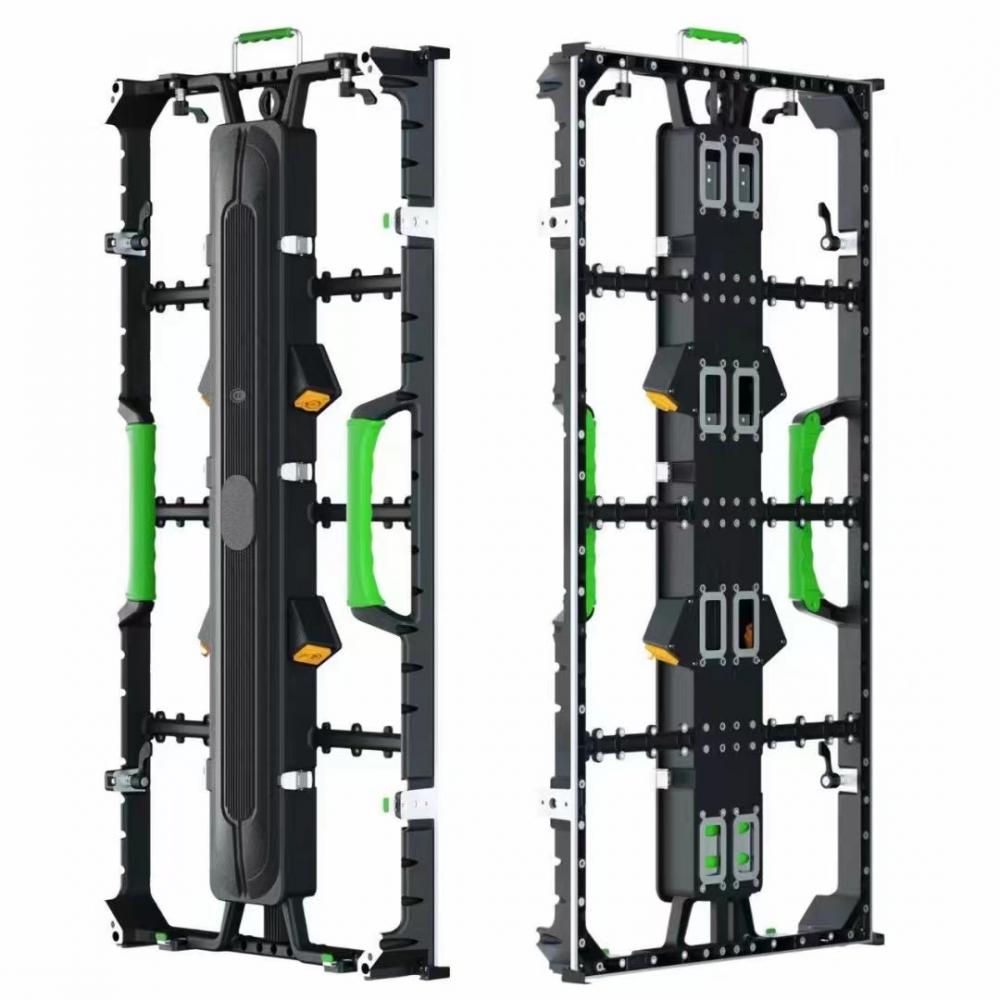

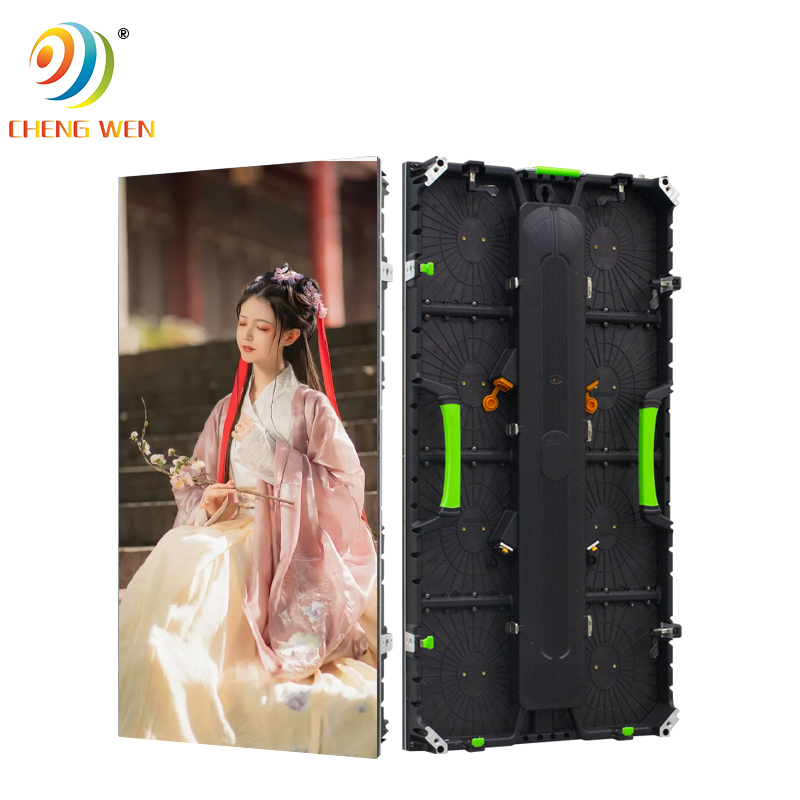

The LED display panel is lightweight and easy to install, making it perfect for rental applications. It features a slim design and a die-cast aluminum cabinet that is both durable and weather-resistant, ensuring that it can withstand harsh outdoor conditions.The P2.976 Stage Outdoor Rental LED Display Panel is a high-quality LED display panel that is designed for outdoor use. It features a pixel pitch of 2.976mm, which provides excellent image clarity and sharpness, even at a close viewing distance. This makes it ideal for use in outdoor events such as concerts, festivals, and sports events.
The P2.976 Stage Outdoor Rental LED Display Panel also features a high refresh rate, which ensures that images are displayed smoothly and without any lag or flicker. It also has a high brightness level, which ensures that images are visible even in bright sunlight.
The LED display panel is easy to control and can be customized to display a variety of content, including text, images, videos, and animations. It also features a wide viewing angle, which ensures that the content is visible from a variety of angles and distances.
Packing way: Flight case
| MAIN TECHNICAL PARAMETERS FOR INDOOR LED DISPLAY(PITCH2.976) | |||
| （Technical parameters） | UNIT | （ parameters values ） | |
| （Pixel pitch） | MM | 2.976 | |
| （Panel size） | MM | L250*H250*T16.5 | |
| （Physical density） | /M2 | 112896 | |
| （Pixel configuration） | R/G/B | 1,1,1 | |
| （Driving method） |
| 1/21 Constant current 1/21scan | |
| （LED Encapsulation） | SMD | 1415 | |
| （Display resolution） | DOTS | 84X84=7056 | |
| （Module weight） | KG | 0.55 | |
| （Module port） |
| HUB-HD75E | |
| （Module working voltage） | VDC | 5 | |
| （Module consumption ） | W | 28 | |
| Panel Parameters | |||
| （Viewing angle） | Deg. | 140 | |
| （Option distance） | M | 3-40 | |
| （Driving device） |
| IC:2038S/2153 | |
| （Every square metre module） | PCS | 16 | |
| （Maximum power） | W/ M2 | 450 | |
| （Frame Frequency） | HZ/S | ≥60 | |
| （Refresh frequency） | HZ/S | ≥1920/3840 | |
| （Equilibrium brightness） | CD/ M2 | ≥5500-6500mcd | |
| （Working environment temperature） | 0C | -20~60 | |
| （Working environment humidity） | RH | 10%～70% | |
| （Display working voltage） | VAC | AC47~63HZ，220V±15%/110V±15% | |
| （Colour temperature） |
| 6500K-11500K | |
| （Gray scale/color） |
| ≥16.7M color | |
| （Input signal） |
| RF\ S-Video\ RGB etc | |
| （Control system） |
| NovaStar Linsn Coloright | |
| （Mean free error time） | HOURS | ＞5000 | |
| （Life） | HOURS | 100000 | |
| （Lamp failure frequency） |
| ＜0.0001 | |
| （Antijam） |
| IEC801 | |
| （Safety） |
| GB4793 | |
| （Resist the electricity） |
| 1500V last 1min No breakdown | |
| （IP rating） |
| IP65 | |
| （Steel box size） | mm | L500Xh500/500x1000 | |
| Selling Units: | Square Meter |
|---|---|
| Package Type: | Flight case |
| Picture Example: |
|
