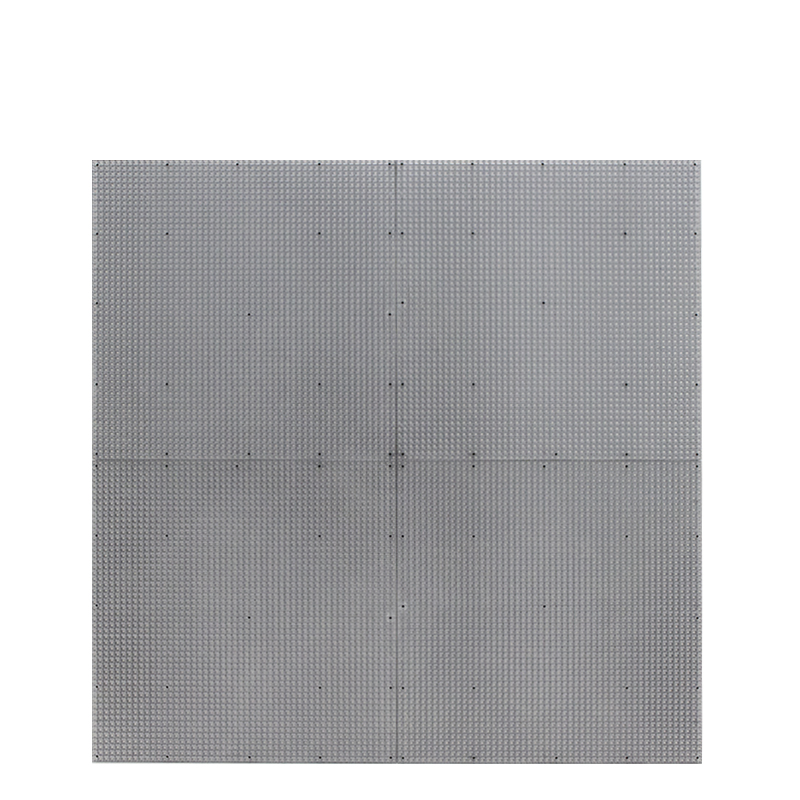

Stage Pantalla Led Screen The P4.81 Interactive Dance Floor Led Display is a high-quality LED Display designed specifically for use in dance floors. It features a pixel pitch of 4.81mm, which provides a high level of detail and clarity for displaying graphics and video content Stage Pantalla Led Screen.
The PH4.81 Interactive Dance Floor LED Display is also highly customizable, with a range of color and brightness settings that can be adjusted to suit any performance or event. It is also lightweight and easy to install, making it an ideal choice for both permanent installations and temporary events.
Whether you are hosting a dance party, a concert, or a corporate event, the PH4.81 Interactive Dance Floor LED Display is an innovative and exciting way to engage your audience and create a truly memorable experience.
Packing way: Flight case
| MAIN TECHNICAL PARAMETERS FOR INDOOR LED DISPLAY(PITCH4.81) | |||
| （Technical parameters） | UNIT | （ parameters values ） | |
| （Pixel pitch） | MM | 4.81 | |
| （Panel size） | MM | L250*H250*T13 | |
| （Physical density） | /M2 | 43264 | |
| （Pixel configuration） | R/G/B | 1,1,1 | |
| （Driving method） |
| 1/13 Constant current 1/13scan | |
| （LED Encapsulation） | SMD | 1921 white | |
| （Display resolution） | DOTS | 52*52=2704 | |
| （Module weight） | KG | 0.25 | |
| （Module port） |
| HUB-HD75B(1) | |
| （Module working voltage） | VDC | 5 | |
| （Module consumption ） | W | 28 | |
| Panel Parameters | |||
| （Viewing angle） | Deg. | 140 | |
| （Option distance） | M | 4-30 | |
| （Driving device） |
| IC:2038S/2153 | |
| （Every square metre module） | PCS | 16 | |
| （Maximum power） | W/ M2 | 450 | |
| （Frame Frequency） | HZ/S | ≥60 | |
| （Refresh frequency） | HZ/S | ≥1920/3840HZ | |
| （Equilibrium brightness） | CD/ M2 | ≥5500-6500mcd | |
| （Working environment temperature） | 0C | -10~60 | |
| （Working environment humidity） | RH | 10%～70% | |
| （Display working voltage） | VAC | AC47~63HZ，220V±15%/110V±15% | |
| （Colour temperature） |
| 7000K-10000K | |
| （Gray scale/color） |
| ≥16.7M color | |
| （Input signal） |
| RF\ S-Video\ RGB etc | |
| （Control system） |
| NovaStar Linsn Coloright | |
| （Mean free error time） | HOURS | ＞5000 | |
| （Life） | HOURS | 100000 | |
| （Lamp failure frequency） |
| ＜0.0001 | |
| （Antijam） |
| IEC801 | |
| （Safety） |
| GB4793 | |
| （Resist the electricity） |
| 1500V last 1min No breakdown | |
| （IP rating） |
| The back IP40，The front IP56 | |
| （Steel box size） | mm | L500*h1000/500x1000 | |
| Selling Units: | Square Meter |
|---|---|
| Picture Example: |
|
| Download: |
|
