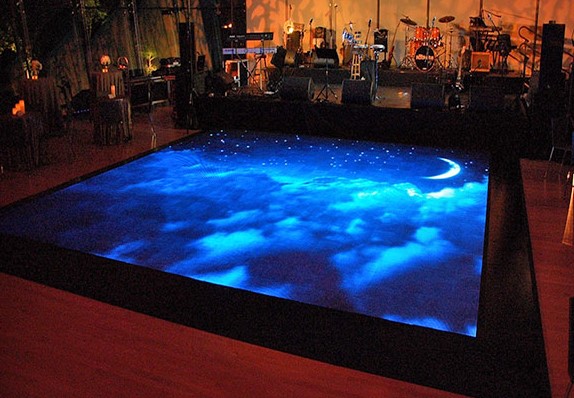

The P4.81 Interactive Dance Floor Led Screen is a cutting-edge technology that combines LED Screen technology with an interactive dance floor. It is designed to enhance the visual experience of dance performances, concerts, parties, and other events.
The Led Screen is made up of small pixel pitch LED panels, with a pixel pitch of 4.81mm. This high pixel density ensures sharp and vibrant visuals, even from a close distance. The LED panels are also lightweight and easy to install, making them suitable for temporary setups.
The interactive dance floor feature allows dancers and performers to interact with the LED screen through their movements. The floor is equipped with sensors that detect motion and translate it into visual effects on the LED screen. This creates a dynamic and immersive experience for both performers and the audience.
The LED screen can display a wide range of visual effects, including patterns, images, videos, and animations. It can be controlled through a computer or a dedicated Controller, allowing for real-time customization of the visuals. This versatility makes it suitable for different types of performances and events.
The P4.81 Interactive Dance Floor LED Screen is also customizable in terms of size and shape. It can be configured to fit different venues and spaces, making it adaptable to various event requirements. Additionally, it is durable and weatherproof, making it suitable for both indoor and outdoor use.
Overall, the P4.81 Interactive Dance Floor LED Screen is a state-of-the-art technology that adds an extra dimension to dance performances and events. Its high-quality visuals, interactive features, and customizable options make it a popular choice for event organizers and performers.
Packing way: Flight Case
| MAIN TECHNICAL PARAMETERS FOR INDOOR Led Display(PITCH4.81) | |||
| （Technical parameters） | UNIT | （ parameters values ） | |
| （Pixel pitch） | MM | 4.81 | |
| （Panel size） | MM | L250*H250*T13 | |
| （Physical density） | /M2 | 43264 | |
| （Pixel configuration） | R/G/B | 1,1,1 | |
| （Driving method） |
| 1/13 Constant current 1/13scan | |
| （LED Encapsulation） | SMD | 1921 | |
| （Display resolution） | DOTS | 52*52=2704 | |
| （Module weight） | KG | 0.25 | |
| （Module port） |
| HUB-HD75B(1) | |
| （Module working voltage） | VDC | 5 | |
| （Module consumption ） | W | 28 | |
| ※Panel | |||
| （Viewing angle） | Deg. | 140 度 | |
| （Option distance） | M | 4-30 | |
| （Driving device） |
| IC:2038S/2153 | |
| （Every square metre module） | PCS | 16 | |
| （Maximum power） | W/ M2 | 450 | |
| （Frame Frequency） | HZ/S | ≥60 | |
| （Refresh frequency） | HZ/S | ≥1920/3840HZ | |
| （Equilibrium brightness） | CD/ M2 | ≥5500-6500mcd | |
| （Working environment temperature） | 0C | -10~60 | |
| （Working environment humidity） | RH | 10%～70% | |
| （Display working voltage） | VAC | AC47~63HZ，220V±15%/110V±15% | |
| （Colour temperature） |
| 7000K-10000K | |
| （Gray scale/color） |
| ≥16.7M color | |
| （Input signal） |
| RF\ S-Video\ RGB etc | |
| （Control system） |
| NovaStar Linsn Coloright | |
| （Mean free error time） | HOURS | ＞5000 | |
| （Life） | HOURS | 100000 | |
| （Lamp failure frequency） |
| ＜0.0001 | |
| （Antijam） |
| IEC801 | |
| （Safety） |
| GB4793 | |
| （Resist the electricity） |
| 1500V last 1min No breakdown | |
| （IP rating） |
| The back IP40，The front IP56 | |
| （Steel box size） | mm | L500*h1000/500x1000 | |
| Selling Units: | Square Meter |
|---|---|
| Package Type: | Flight case |
| Picture Example: |
|
| Download: |
|
