Product Introdution
The P5 in the name refers to the pixel pitch, which is the distance between each pixel on the screen. A lower pixel pitch means that the screen has a higher resolution and can display more detailed images.

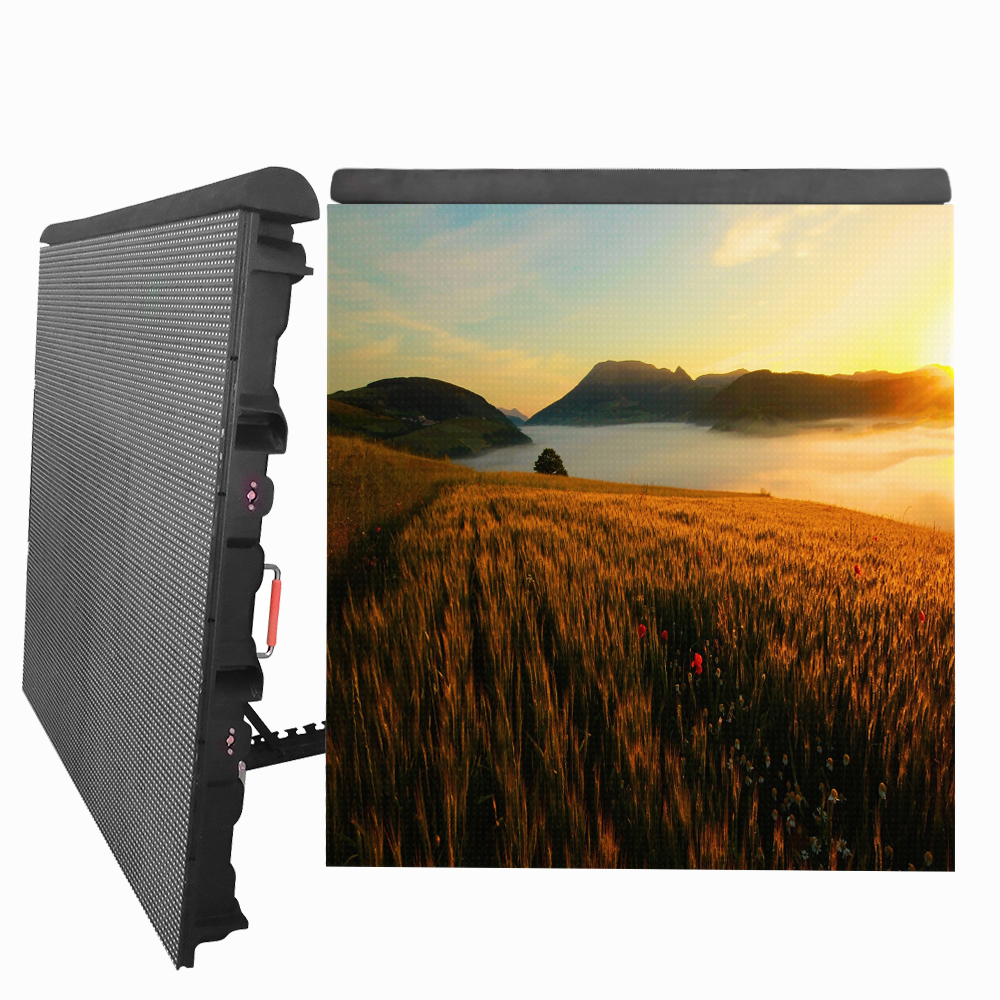

The outdoor P5
Football Stadium Advertising Led Screen is designed to withstand harsh weather conditions and is typically installed in a prominent location within the stadium. It is controlled by a computer system that can be programmed to display different types of content, including live video feeds, advertisements, and scores.
The screen is a powerful marketing tool for businesses looking to reach a large audience during football matches. It can be used to display advertisements for products and services, as well as to promote upcoming events and special offers.
Overall, the outdoor P5 Football Stadium Advertising LED Screen is an essential component of modern football stadiums, providing fans with important information and creating new opportunities for businesses to connect with their target audience.
Appication
An outdoor P5 football stadium advertising LED Screen is a large electronic display board that is used to display advertisements, scores, and other information during football matches. The screen is made up of thousands of small LED lights that work together to create a high-resolution display that can be seen from a distance.
Packing Solution
Packing way: Wooden box
Data Sheet
MAIN TECHNICAL PARAMETERS FOR OUTDOOR Led Display(PITCH5) |
(Technical parameters) | UNIT | ( parameters values ) |
(Pixel pitch) | MM | 5 |
(Panel size) | MM | L320*H160*T14 |
(Physical density) | /M2 | 40000 |
(Pixel configuration) | R/G/B | 1,1,1 |
(Driving method) | | 1/8 Constant current 1/8scan |
(LED Encapsulation) | SMD | 1921 |
(Display resolution) | DOTS | 64*32=2048 |
(Module weight) | KG | 0.25 |
(Module port) | | HUB-HD75 (2) |
(Module working voltage) | VDC | 5 |
(Module consumption ) | W | 25 |
Panel Parameter |
(Viewing angle) | Deg. | 140 |
(Option distance) | M | 4-30 |
(Driving device) | | IC:2037S/2153 |
(Every square metre module) | PCS | 19.5 |
(Maximum power) | W/ M2 | 490 |
(Frame Frequency) | HZ/S | ≥60 |
(Refresh frequency) | HZ/S | ≥1920/3840HZ |
(Equilibrium brightness) | CD/ M2 | ≥5500-6500mcd |
(Working environment temperature) | 0C | -10~60 |
(Working environment humidity) | RH | 10%~70% |
(Display working voltage) | VAC | AC47~63HZ,220V±15%/110V±15% |
(Colour temperature) | | 7000K-10000K |
(Gray scale/color) | | ≥16.7M color |
(Input signal) | | RF\ S-Video\ RGB etc |
(Control system) | | NovaStar Linsn Coloright |
(Mean free error time) | HOURS | >5000 |
(Life) | HOURS | 100000 |
(Lamp failure frequency) | | <0.0001 |
(Antijam) | | IEC801 |
(Safety) | | GB4793 |
(Resist the electricity) | | 1500V last 1min No breakdown |
(IP rating) | | The back IP40,The front IP65 |
(Steel box size) | mm | L640*h640/960x960 |
