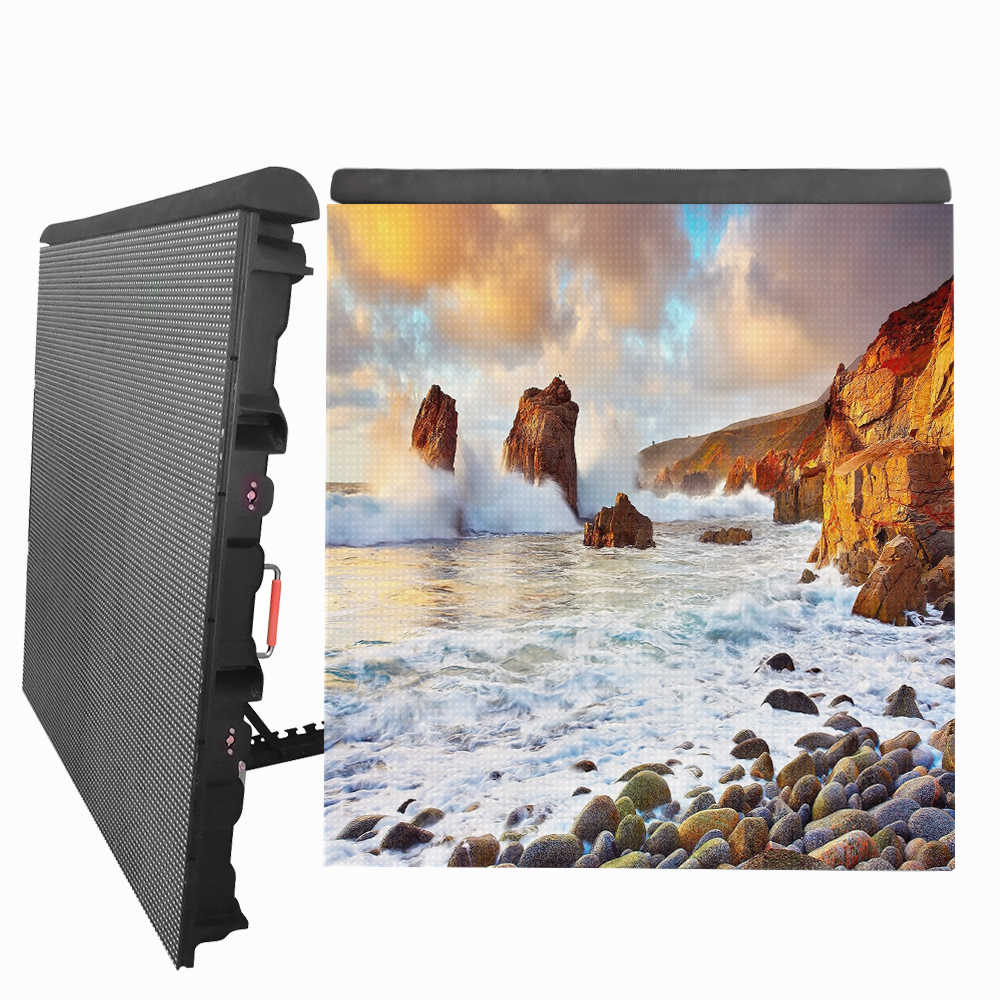

The P8 Waterproof Football Stadium Advertising Led Screen is a high-quality Led Display that is designed specifically for use in outdoor environments, such as football stadiums. This LED Screen is waterproof and weather-resistant, making it ideal for use in all types of weather conditions.
This LED screen is designed for advertising purposes and can be used to display a wide range of content, including advertisements, live scores, player stats, and more. The LED screen is also easy to install and can be customized to fit the specific needs of your football stadium.
P8 Waterproof Football Stadium Advertising LED Screen is a high-quality LED Display that is perfect for use in outdoor environments. Its waterproof and weather-resistant design, high brightness and contrast, and easy installation make it an ideal choice for football stadiums and other outdoor venues.
Packing way: Wooden box
| MAIN TECHNICAL PARAMETERS FOR OUTDOOR LED DISPLAY(PITCH8) | |||
| （Technical parameters） | UNIT | （ parameters values ） | |
| （Pixel pitch） | MM | 8 | |
| （Panel size） | MM | L256*H128*T13 | |
| （Physical density） | /M2 | 15625 | |
| （Pixel configuration） | R/G/B | 1,1,1 | |
| （Driving method） |
| 1/4 Constant current 1/4scan | |
| （LED Encapsulation） | SMD | 3535 | |
| （Display resolution） | DOTS | 32*16=512 | |
| （Module weight） | KG | 0.2 | |
| （Module port） |
| HUB-HD75 (2) | |
| （Module working voltage） | VDC | 5 | |
| （Module consumption ） | W | 16 | |
| Panel Parameters | |||
| （Viewing angle） | Deg. | 140 | |
| （Option distance） | M | 6-30 | |
| （Driving device） |
| IC:2037/2153 | |
| （Every square metre module） | PCS | 30.5 | |
| （Maximum power） | W/ M2 | 488 | |
| （Frame Frequency） | HZ/S | ≥60 | |
| （Refresh frequency） | HZ/S | ≥1920/3840HZ | |
| （Equilibrium brightness） | CD/ M2 | ≥5500-6500mcd | |
| （Working environment temperature） | 0C | -10~60 | |
| （Working environment humidity） | RH | 10%～70% | |
| （Display working voltage） | VAC | AC47~63HZ，220V±15%/110V±15% | |
| （Colour temperature） |
| 7000K-10000K | |
| （Gray scale/color） |
| ≥16.7M color | |
| （Input signal） |
| RF\ S-Video\ RGB etc | |
| （Control system） |
| NovaStar Linsn Coloright | |
| （Mean free error time） | HOURS | ＞5000 | |
| （Life） | HOURS | 100000 | |
| （Lamp failure frequency） |
| ＜0.0001 | |
| （Antijam） |
| IEC801 | |
| （Safety） |
| GB4793 | |
| （Resist the electricity） |
| 1500V last 1min No breakdown | |
| （IP rating） |
| The back IP40，The front IP65 | |
| （Steel box size） | mm | L512*h512/640x640/960x960 | |
| Selling Units: | Square Meter |
|---|---|
| Package Type: | Wooden box |
| Picture Example: |
|
