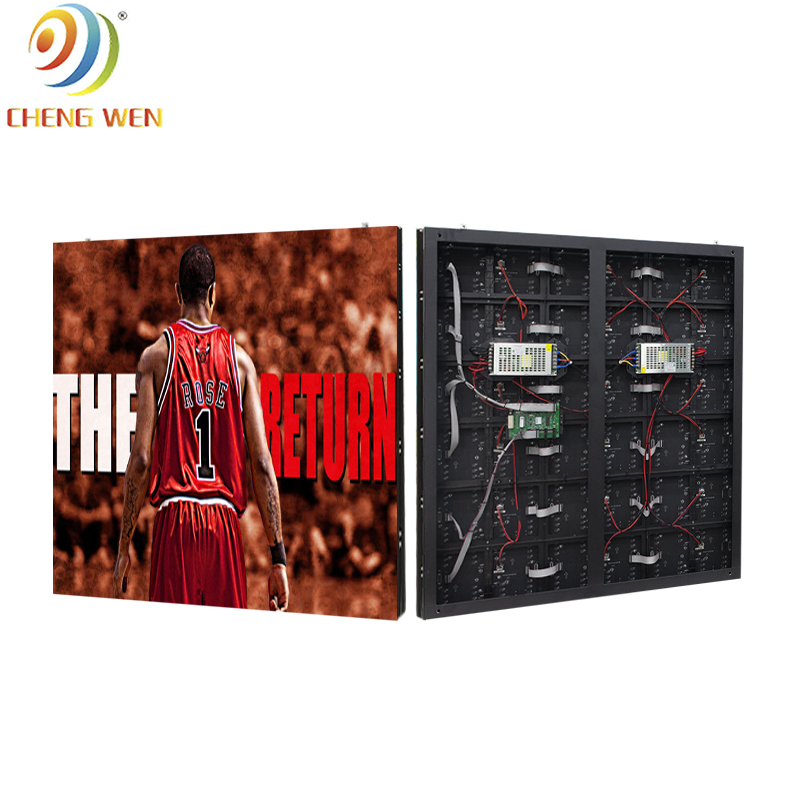

The P5 indoor fixed install LED Screen front maintenance type is a type of Led Display that is designed for indoor use and is installed permanently in a fixed location. The front maintenance type allows for easy access to the display modules for maintenance and repairs, without the need to disassemble the entire screen.
Overall, the P5 indoor fixed install LED screen front maintenance type is a reliable and efficient display solution for indoor applications that require high-quality image and video display.
The front maintenance design of the LED screen allows for quick and easy maintenance, reducing downtime and minimizing disruptions to the display. The modules can be easily accessed from the front of the screen, making it easy to replace faulty parts or perform routine maintenance tasks.

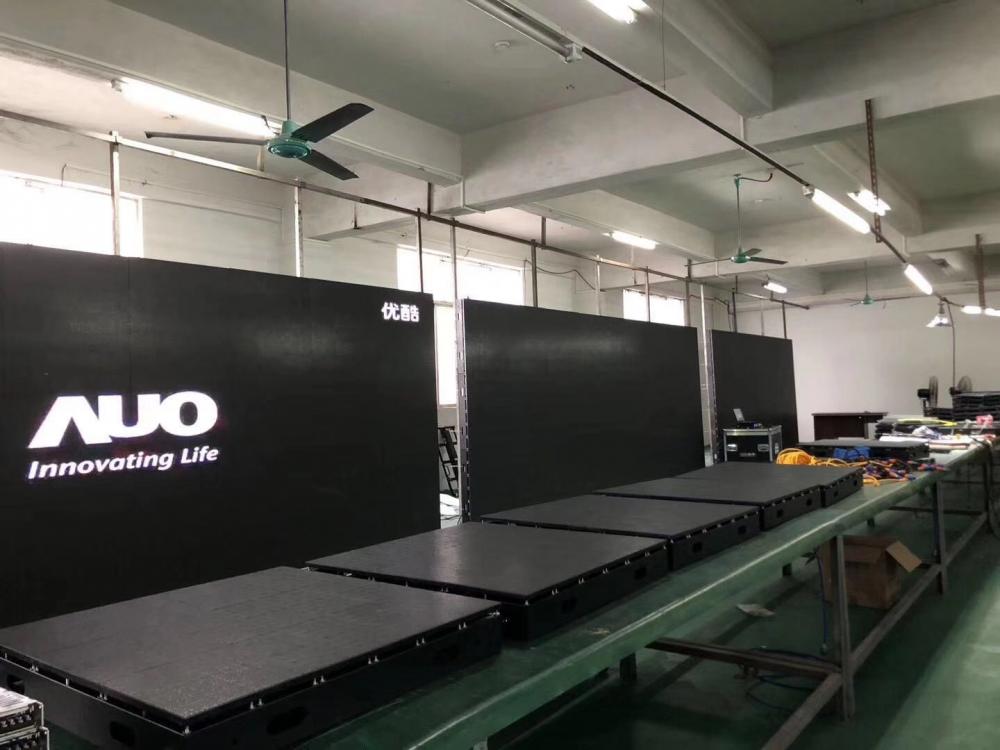

Indoor fixed install use Iron cabinet without door which can be lighter on weight. Packed by wooden boxes for more safety on transportation.
| MAIN TECHNICAL PARAMETERS FOR INDOOR LED DISPLAY(PITCH 5) | |||
| （Technical parameters） | UNIT | （ parameters values ） | |
| （Pixel pitch） | MM | 5 | |
| （Panel size） | MM | L320*H160*T13 | |
| （Physical density） | /M2 | 40000 | |
| （Pixel configuration） | R/G/B | 1,1,1 | |
| （Driving method） |
| 1/16 Constant current 1/16scan | |
| （LED Encapsulation） | SMD | 2121 | |
| （Display resolution） | DOTS | 64X32=2048 | |
| （Module weight） | KG | 0.25 | |
| （Module port） |
| HUB75 | |
| （Module working voltage） | VDC | 5 | |
| （Module consumption ） | W | 18 | |
| Panel Parameters | |||
| （Viewing angle） | Deg. | 140 | |
| （Option distance） | M | 5-50 | |
| （Driving device） |
| IC:2037/2153 | |
| （Every square metre module） | PCS | 19.53 | |
| （Maximum power） | W/ M2 | 351 | |
| （Frame Frequency） | HZ/S | ≥60 | |
| （Refresh frequency） | HZ/S | ≥1920-3840hz | |
| （Equilibrium brightness） | CD/ M2 | ≥1200-1500mcd | |
| （Working environment temperature） | 0C | -10~60 | |
| （Working environment humidity） | RH | 10%～70% | |
| （Display working voltage） | VAC | AC46～54HZ，220V±15%/110V±15% | |
| （Colour temperature） |
| 8500K-11500K | |
| （Gray scale/color） |
| ≥16.7M color | |
| （Input signal） |
| RF\ S-Video\ RGB etc | |
| （Control system） |
| NOvaStar Linsn Coloright | |
| （Mean free error time） | HOURS | ＞5000 | |
| （Life） | HOURS | 100000 | |
| （Lamp failure frequency） |
| ＜0.0001 | |
| （Antijam） |
| IEC801 | |
| （Safety） |
| GB4793 | |
| （Resist the electricity） |
| 1500V last 1min No breakdown | |
| （IP rating） |
| The back IP40，The front IP50 | |
| （Steel box size） | mm | L640Xh640/960*960 | |
| Selling Units: | Others |
|---|---|
| Package Type: | Wooden box |

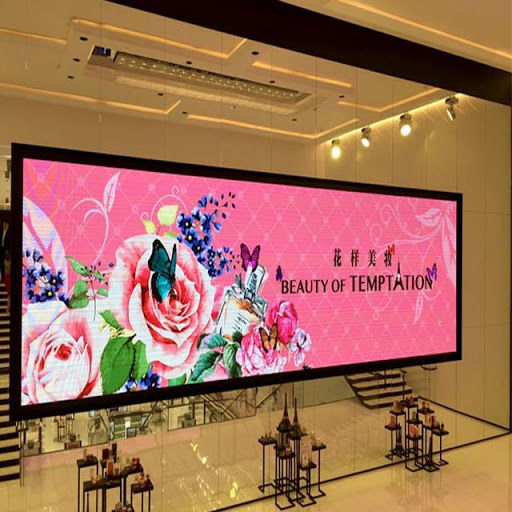

| Picture Example: |
|
