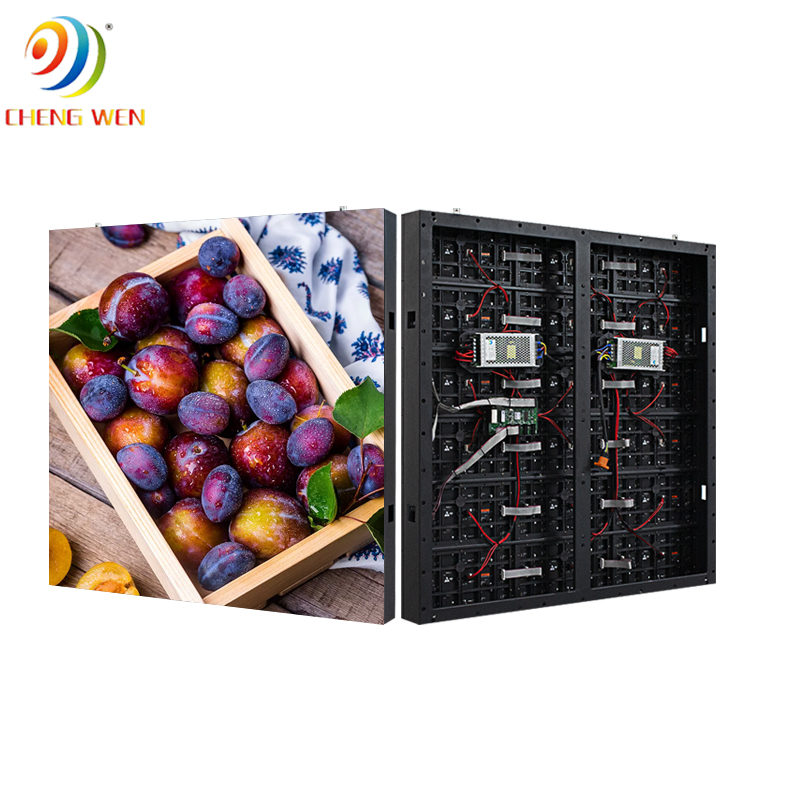

The P3 HD Indoor LED advertising screen is a high-definition display that is designed for indoor use. It is made up of small LED modules that are tightly packed together to create a seamless and vibrant display. The P3 HD Indoor LED advertising screen is capable of displaying high-resolution images and videos, making it ideal for advertising and promotional purposes.
Packing way: Wooden box
| MAIN TECHNICAL PARAMETERS FOR INDOOR LED Display(PITCH3) | |||
| （Technical parameters） | UNIT | （ parameters values ） | |
| （Pixel pitch） | MM | 3 | |
| （Panel size） | MM | L192*H192*T14 | |
| （Physical density） | /M2 | 111111 | |
| （Pixel configuration） | R/G/B | 1,1,1 | |
| （Driving method） |
| 1/32 Constant current 1/32scan | |
| （LED Encapsulation） | SMD | 2121 | |
| （Display resolution） | DOTS | 64X64=4096 | |
| （Module weight） | KG | 0.3 | |
| （Module port） |
| HUB75E | |
| （Module working voltage） | VDC | 5 | |
| （Module consumption ） | W | 16 | |
| Panel Parameter | |||
| （Viewing angle） | Deg. | 140 | |
| （Option distance） | M | 3-45 | |
| （Driving device） |
| IC:2037/2153 | |
| （Every square metre module） | PCS | 27.13 | |
| （Maximum power） | W/ M2 | 560 | |
| （Frame Frequency） | HZ/S | ≥60 | |
| （Refresh frequency） | HZ/S | ≥1920/3840HZ | |
| （Equilibrium brightness） | CD/ M2 | ≥440 | |
| （Working environment temperature） | 0C | -10~60 | |
| （Working environment humidity） | RH | 10%～70% | |
| （Display working voltage） | VAC | AC46～54HZ，220V±15%/110V±15% | |
| （Colour temperature） |
| 8500K-11500K | |
| （Gray scale/color） |
| ≥16.7M color | |
| （Input signal） |
| RF\ S-Video\ RGB etc | |
| （Control system） |
| NOvaStar Linsn Coloright | |
| （Mean free error time） | HOURS | ＞5000 | |
| （Life） | HOURS | 100000 | |
| （Lamp failure frequency） |
| ＜0.0001 | |
| （Antijam） |
| IEC801 | |
| （Safety） |
| GB4793 | |
| （Resist the electricity） |
| 1500V last 1min No breakdown | |
| （IP rating） |
| The back IP40，The front IP50 | |
| （Steel box size） | mm | L576Xh576/768X768/960X960 | |
| Selling Units: | Square Meter |
|---|---|
| Package Type: | wooden box |

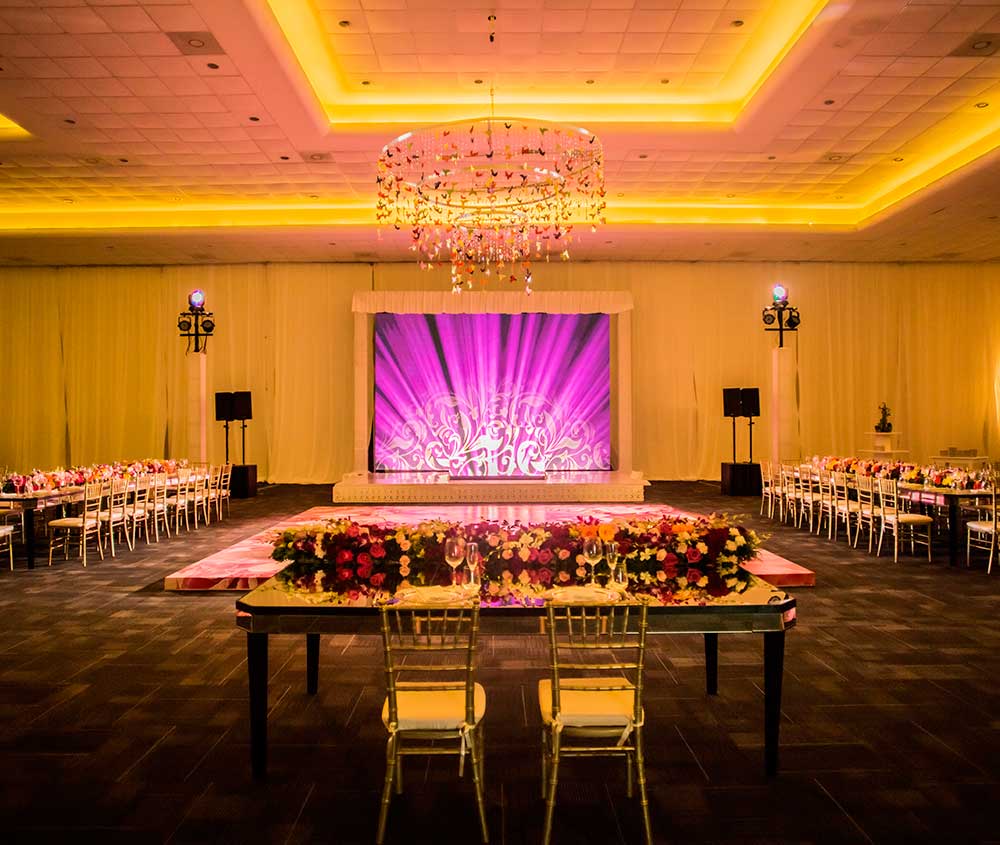

| Picture Example: |
|
| Download: |
|
