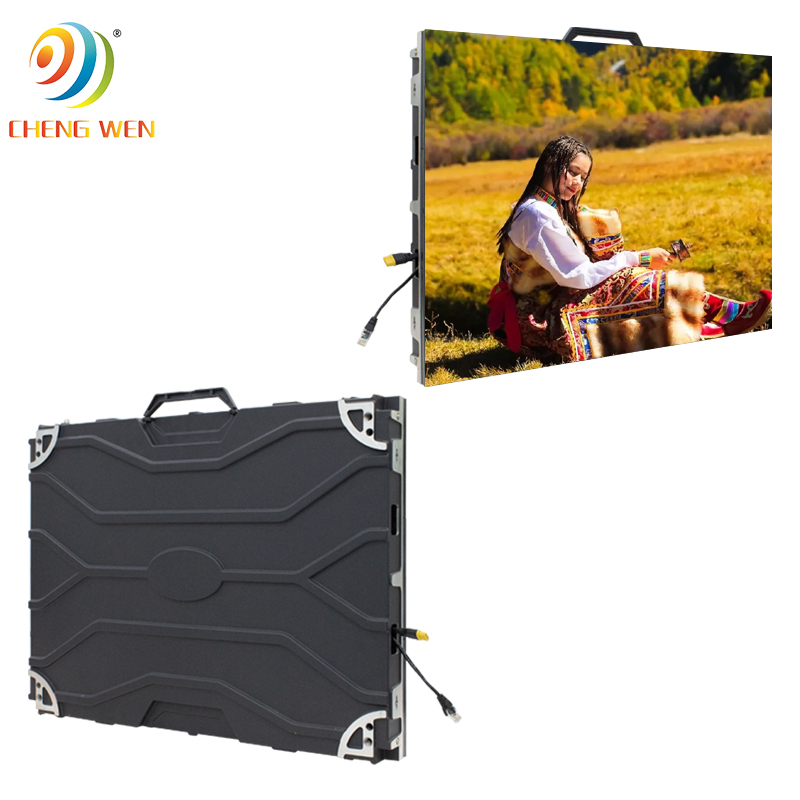

The P1.86 Slim Fixed LED Screen Mount to Wall is a mounting solution designed to securely attach a slim Led Screen to a wall. This mount is designed to fit LED screens with a pixel pitch of 1.86mm, which produces a high-quality, high-resolution display.
Installation of the P1.86 Slim Fixed LED Screen Mount to Wall is quick and easy, with all the necessary hardware included in the package. The mount is designed to be installed by a professional, ensuring that the LED screen is securely attached to the wall and that it is level and aligned correctly.
P1.86 Slim Fixed LED Screen Mount to Wall is an excellent choice for anyone looking for a high-quality, reliable mounting solution for their slim LED screen. It is easy to install, durable, and designed to provide a secure and stable platform for your LED screen.
Packing way: Dooden box / Flight case
| MAIN TECHNICAL PARAMETERS FOR INDOOR Led Display(PITCH1.86) | |||
| （Technical parameters） | UNIT | （ parameters values ） | |
| （Pixel pitch） | MM | 1.86 | |
| （Panel size） | MM | L320*H160*T16 | |
| （Physical density） | /M2 | 288900 | |
| （Pixel configuration） | R/G/B | 1,1,1 | |
| （Driving method） |
| 1/43 Constant current 1/43scan | |
| （LED Encapsulation） | SMD | 1515 | |
| （Display resolution） | DOTS | 172X86=14792 | |
| （Module weight） | KG | 0.45 | |
| （Module port） |
| HUB-75 | |
| （Module working voltage） | VDC | 5 | |
| （Module consumption ） | W | 21 | |
| Panel Parameters | |||
| （Viewing angle） | Deg. | 140 | |
| （Option distance） | M | 2-30 | |
| （Driving device） | IC | IC:2153 | |
| （Every square metre module） | PCS | 19.5 | |
| （Maximum power） | W/ M2 | 410 | |
| （Frame Frequency） | HZ/S | ≥60 | |
| （Refresh frequency） | HZ/S | 3200HZ | |
| （Equilibrium brightness） | CD/ M2 | 800-1000mcd | |
| （Working environment temperature） | 0C | -10~60 | |
| （Working environment humidity） | RH | 10%～70% | |
| （Display working voltage） | VAC | AC47~63HZ，220V±15%/110V±15% | |
| （Colour temperature） |
| 7000K-11500K | |
| （Gray scale/color） |
| ≥16.7M color | |
| （Input signal） |
| RF\ S-Video\ RGB etc | |
| （Control system） |
| NOvaStar Linsn Coloright | |
| （Mean free error time） | HOURS | ＞5000 | |
| （Life） | HOURS | 100000 | |
| （Lamp failure frequency） |
| ＜0.0001 | |
| （Antijam） |
| IEC801 | |
| （Safety） |
| GB4793 | |
| （Resist the electricity） |
| 1500V last 1min No breakdown | |
| （IP rating） |
| The back IP40，The front IP50 | |
| （Steel box size） | mm | L640Xh480/640X640 | |
| Selling Units: | Square Meter |
|---|---|
| Package Type: | Flight case / Wooden box |

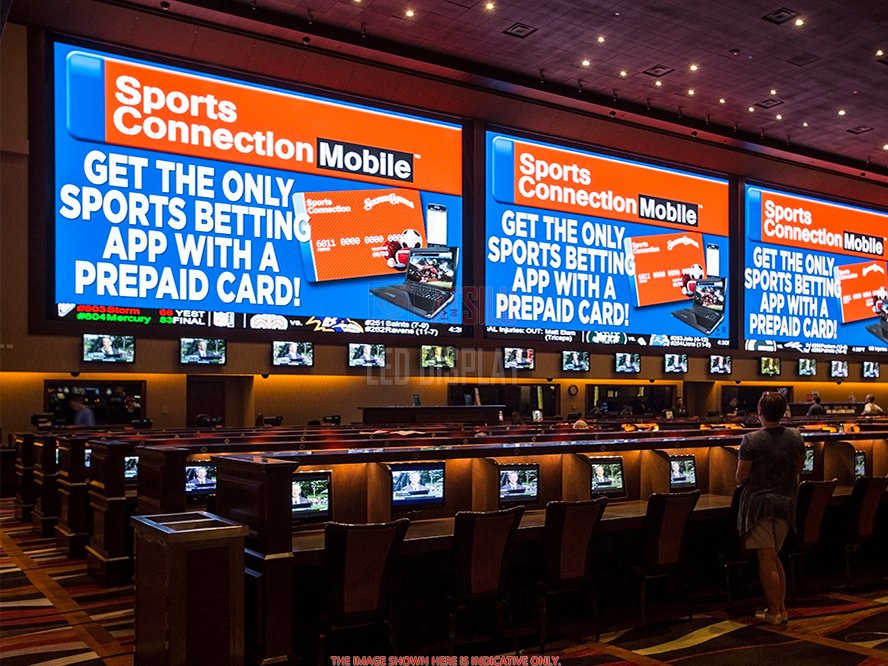

| Picture Example: |
|
