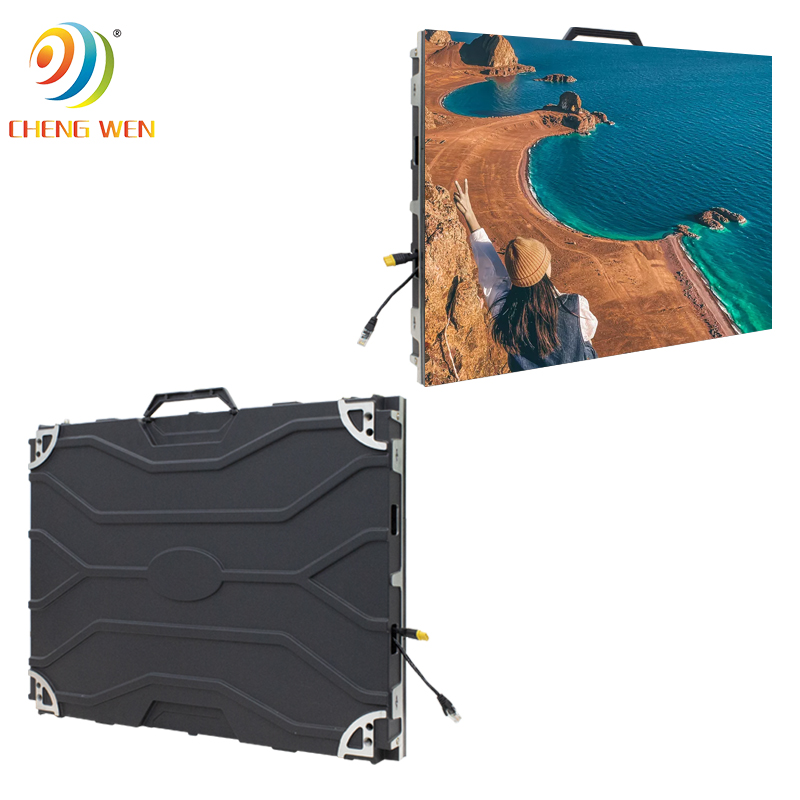

The P1.667 Fine Pixel indoor Slim Led Screen is a high-resolution indoor Led Display that is perfect for applications where clarity and detail are essential. With a pixel pitch of just 1.667mm, this LED screen is capable of displaying high-quality images and videos with stunning clarity and detail. The slim design of this LED screen makes it ideal for installations where space is limited, while the high brightness and contrast ratio ensure that the images on the screen are always clear and vibrant. Whether you are looking to display advertising, information, or entertainment content, the P1.667 Fine Pixel indoor Slim LED Screen is an excellent choice that is sure to impress.
Slime Die-casting Aluminum cabinet are a very light weight design, can be easily installed amont to the wall, fit well for indoor video studios.
Packing ways: Flight cases or Wooden box
| MAIN TECHNICAL PARAMETERS FOR INDOOR LED Display(PITCH1.667) | |||
| （Technical parameters） | UNIT | （ parameters values ） | |
| （Pixel pitch） | MM | 1.667 | |
| （Panel size） | MM | W200*H150*T13 | |
| （Physical density） | /M2 | 360000点 | |
| （Pixel configuration） | R/G/B | 1,1,1 | |
| （Driving method） |
| 1/45S Constant current 1/45scan | |
| （LED Encapsulation） | SMD | 1212 | |
| （Display resolution） | DOTS | 120X90=10800 | |
| （Module weight） | KG | 0.19 | |
| （Module port） |
| HUB-HD907H | |
| 模块工作电压（Module working voltage） | VDC | 5 | |
| 模块功耗 （Module consumption ） | W | 18 | |
| Panel Parameter | |||
| （Viewing angle） | Deg. | 160 | |
| （Option distance） | M | 1-30 | |
| （Driving device） |
| IC2153 | |
| （Every square metre module） | PCS | 33.33 | |
| （Maximum power） | W/ M2 | 600 | |
| （Frame Frequency） | HZ/S | ≥60 | |
| （Refresh frequency） | HZ/S | ≥3480 | |
| （Equilibrium brightness） | CD/ M2 | 900-1200mcd | |
| （Working environment temperature） | 0C | -20~60 | |
| （Working environment humidity） | RH | 10%～70% | |
| （Display working voltage） | VAC | AC46～54HZ，220V±15%/110V±15% | |
| （Colour temperature） |
| 8500K-11500K | |
| （Gray scale/color） |
| ≥16.7M color | |
| （Input signal） |
| RF\ S-Video\ RGB etc | |
| （Control system) |
| NOvaStar Linsn Coloright | |
| （Mean free error time） | HOURS | ＞5000 | |
| （Life） | HOURS | 100000 | |
| （Lamp failure frequency） |
| ＜0.0001 | |
| （Antijam） |
| IEC801 | |
| （Safety） |
| GB4793 | |
| （Resist the electricity） |
| 1500V last 1min No breakdown | |
| （IP rating） |
| The back IP40，The front IP50 | |
| （Steel box size） | mm | L400Xh300 | |
| Selling Units: | Square Meter |
|---|---|
| Package Type: | Flight case / Wooden box |
| Picture Example: |
|
