| Total lamp power (Watts) | |
| Contact Now |

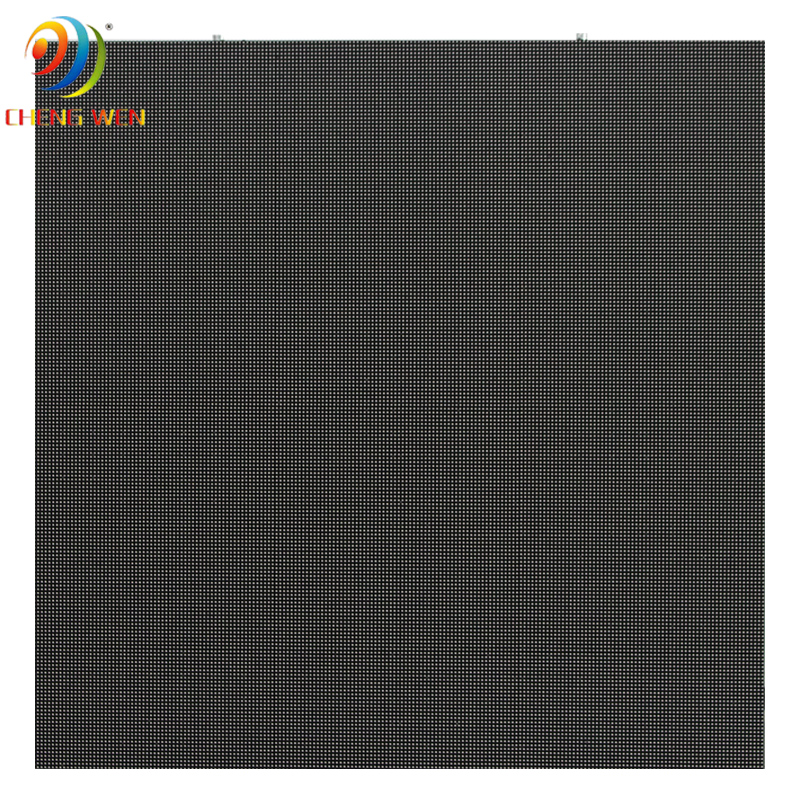

The Led Video Wall in the cabinet has a pixel pitch of 3mm, which ensures high-resolution images and videos. The display is bright and clear, making it ideal for outdoor advertising in areas with high foot traffic.
The cabinet is easy to install and maintain. It comes with a mounting bracket that makes it easy to attach to a wall or pole. The Led Display is also easy to replace, which means you can upgrade the display without having to replace the entire cabinet.
The P3 Outdoor Fixed Install advertising LED Video Wall Iron waterproof Cabinet is perfect for outdoor advertising in malls, airports, train stations, and other high-traffic areas. It is an excellent investment for businesses looking to attract more customers and increase brand awareness.
The P3 Outdoor Fixed Install advertising LED Video Wall Iron waterproof Cabinet is a high-quality LED Display cabinet designed for outdoor advertising purposes. The cabinet is made of iron, which makes it durable and long-lasting. It is also waterproof, which means it can withstand harsh weather conditions such as rain, snow, and extreme temperatures.
Packing way: wooden box
| MAIN TECHNICAL PARAMETERS FOR INDOOR LED DISPLAY(PITCH3) | |||
| （Technical parameters） | UNIT | （ parameters values ） | |
| （Pixel pitch） | MM | 3 | |
| （Panel size） | MM | L192*H192*T14 | |
| （Physical density） | /M2 | 111088 | |
| （Pixel configuration） | R/G/B | 1,1,1 | |
| （Driving method） |
| 1/16 Constant current 1/16scan | |
| （LED Encapsulation） | SMD | 1415 | |
| （Display resolution） | DOTS | 64X64=4096 | |
| （Module weight） | KG | 0.25 | |
| （Module port） |
| HUB-HD75E | |
| （Module working voltage） | VDC | 5 | |
| （Module consumption ） | W | 23 | |
| ※屏体参数 | |||
| （Viewing angle） | Deg. | 140 | |
| （Option distance） | M | 3-30 | |
| （Driving device） |
| IC:2038S/2153 | |
| （Every square metre module） | PCS | 27.12 | |
| （Maximum power） | W/ M2 | 630 | |
| （Frame Frequency） | HZ/S | ≥60 | |
| （Refresh frequency） | HZ/S | ≥1920/3840 | |
| （Equilibrium brightness） | CD/ M2 | ≥5500-6500mcd | |
| （Working environment temperature） | 0C | -20~60 | |
| （Working environment humidity） | RH | 10%～70% | |
| （Display working voltage） | VAC | AC47~63HZ，220V±15%/110V±15% | |
| （Colour temperature） |
| 6500K-11500K | |
| （Gray scale/color） |
| ≥16.7M color | |
| （Input signal） |
| RF\ S-Video\ RGB etc | |
| （Control system） |
| NovaStar Linsn Coloright | |
| （Mean free error time） | HOURS | ＞5000 | |
| （Life） | HOURS | 100000 | |
| （Lamp failure frequency） |
| ＜0.0001 | |
| （Antijam） |
| IEC801 | |
| （Safety） |
| GB4793 | |
| （Resist the electricity） |
| 1500V last 1min No breakdown | |
| （IP rating） |
| The back IP40，The front IP65 | |
| （Steel box size） | mm | L576Xh576/768x768/960x960 | |
| Selling Units: | Square Meter |
|---|---|
| Package Type: | wooden box |
| Picture Example: |
|
| Download: |
|
