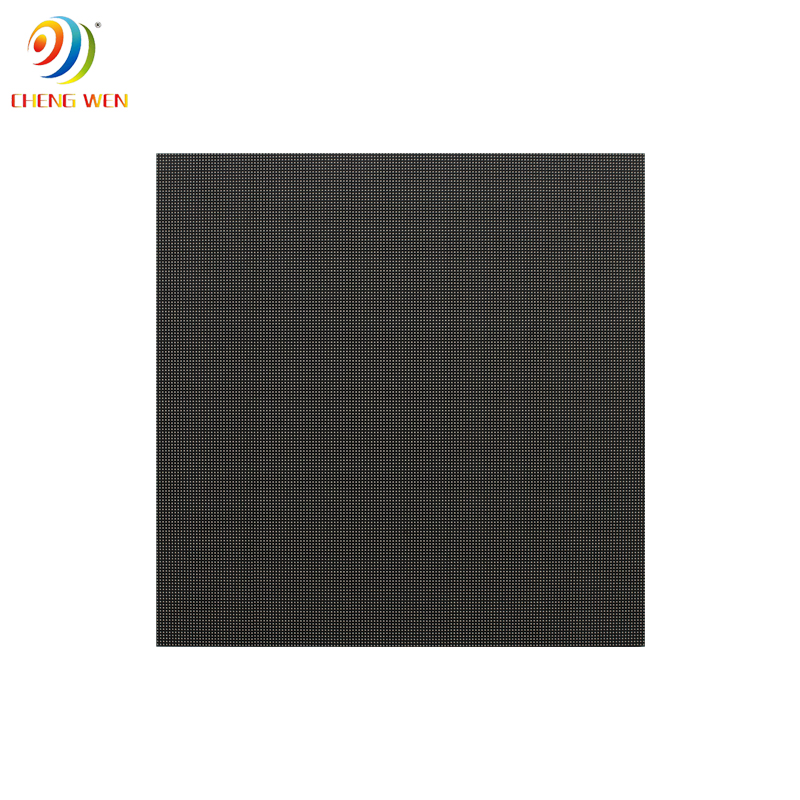

Outdoor Fixed Advertising Video Wall P8 The Led Display is equipped with advanced technology that allows for easy installation and maintenance. It has a modular design that allows for easy replacement of individual LED modules, making it easy to repair and maintain.
Overall, the P8 outdoor waterproof iron cabinet advertising LED display is an excellent choice for businesses looking to advertise their products or services outdoors. It is durable, high-quality, and easy to install and maintain, making it a cost-effective advertising solution.

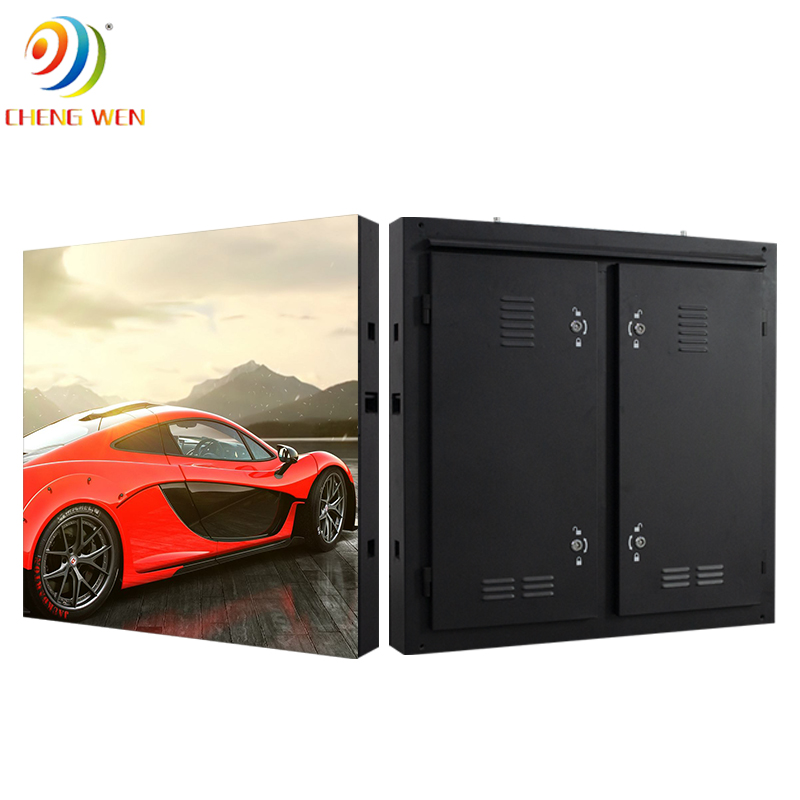

The P8 outdoor waterproof iron cabinet advertising LED display is a high-quality outdoor LED display that is designed to withstand harsh weather conditions. It is made of a durable iron cabinet that is waterproof and dustproof, making it ideal for outdoor advertising.
The P8 LED display features a pixel pitch of 8mm, which means it has a high resolution and can display clear and detailed images and videos. It also has a high brightness level of up to 7000 nits, which ensures that the display is visible even in bright sunlight.
Packing way: Wooden Box
| MAIN TECHNICAL PARAMETERS FOR OUTDOOR LED DISPLAY(PITCH8) | |||
| （Technical parameters） | UNIT | （ parameters values ） | |
| （Pixel pitch） | MM | 8 | |
| （Panel size） | MM | L256*H128*T13 | |
| （Physical density） | /M2 | 15625 | |
| （Pixel configuration） | R/G/B | 1,1,1 | |
| （Driving method） |
| 1/4 Constant current 1/4scan | |
| （LED Encapsulation） | SMD | 3535 | |
| （Display resolution） | DOTS | 32*16=512 | |
| （Module weight） | KG | 0.2 | |
| （Module port） |
| HUB-HD75 (2) | |
| （Module working voltage） | VDC | 5 | |
| （Module consumption ） | W | 16 | |
| Panel Parameters | |||
| （Viewing angle） | Deg. | 140 | |
| （Option distance） | M | 6-30 | |
| （Driving device） |
| IC:2037/2153 | |
| （Every square metre module） | PCS | 30.5 | |
| （Maximum power） | W/ M2 | 488 | |
| （Frame Frequency） | HZ/S | ≥60 | |
| （Refresh frequency） | HZ/S | ≥1920/3840HZ | |
| （Equilibrium brightness） | CD/ M2 | ≥5500-6500mcd | |
| （Working environment temperature） | 0C | -10~60 | |
| （Working environment humidity） | RH | 10%～70% | |
| （Display working voltage） | VAC | AC47~63HZ，220V±15%/110V±15% | |
| （Colour temperature） |
| 7000K-10000K | |
| （Gray scale/color） |
| ≥16.7M color | |
| （Input signal） |
| RF\ S-Video\ RGB etc | |
| （Control system） |
| NovaStar Linsn Coloright | |
| （Mean free error time） | HOURS | ＞5000 | |
| （Life） | HOURS | 100000 | |
| （Lamp failure frequency） |
| ＜0.0001 | |
| （Antijam） |
| IEC801 | |
| （Safety） |
| GB4793 | |
| （Resist the electricity） |
| 1500V last 1min No breakdown | |
| （IP rating） |
| The back IP40，The front IP65 | |
| （Steel box size） | mm | L512*h512/640x640/960x960 | |
| Selling Units: | Square Meter |
|---|---|
| Package Type: | Wooden box |
| Picture Example: |
|
