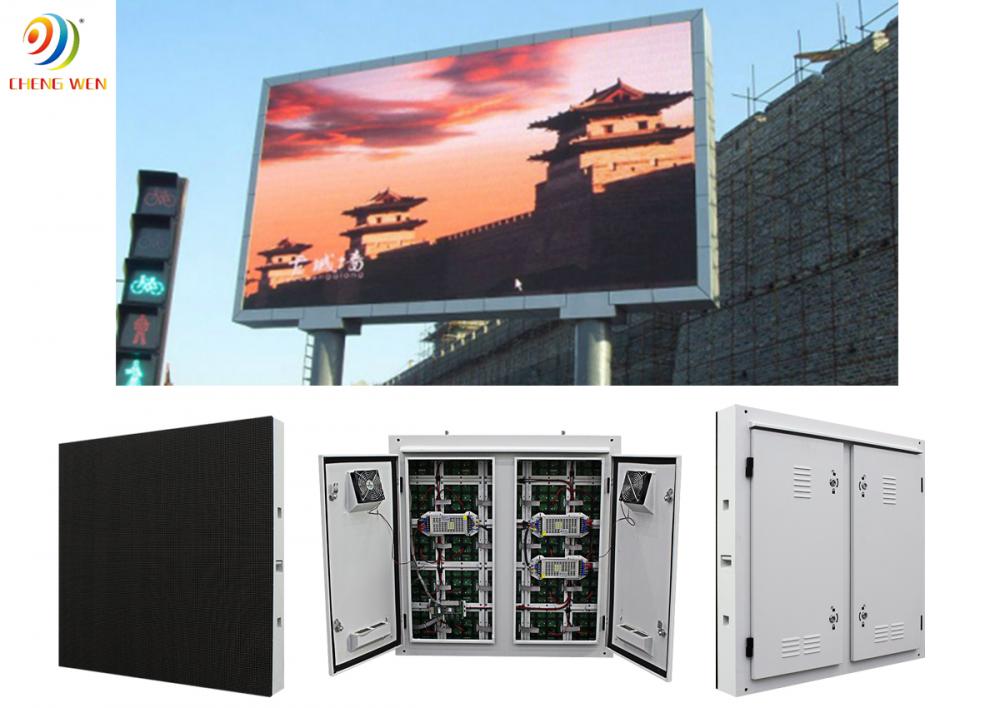

Outdoor Fixed Advertising Video Wall Fixed install outdoor advertising LED video walls are large electronic displays that are permanently installed in outdoor locations such as building facades, stadiums, and public squares. These LED video walls are designed to provide high-resolution, vibrant, and dynamic content to captivate viewers and promote advertising messages.
In conclusion, fixed install outdoor advertising LED video walls are a powerful tool for businesses and advertisers to promote their messages to a large audience. They are durable, weather-resistant, and customizable, making them an effective and efficient way to capture the attention of potential customers.
Fixed install outdoor advertising LED video walls are an effective way to capture the attention of a large audience. They are commonly used in outdoor events, concerts, and sporting events to display live feeds and advertisements. They are also used by businesses to promote their products and services to a wide audience.
Packing way: Wooden box
| MAIN TECHNICAL PARAMETERS FOR INDOOR Led Display(PITCH3.076) | |||
| （Technical parameters） | UNIT | （ parameters values ） | |
| （Pixel pitch） | MM | 3.076 | |
| （Panel size） | MM | L320*H160*T15 | |
| （Physical density） | /M2 | 105625 | |
| （Pixel configuration） | R/G/B | 1,1,1 | |
| （Driving method） |
| 1/13 Constant current 1/13scan | |
| （LED Encapsulation） | SMD | 1415 | |
| （Display resolution） | DOTS | 104X52=5408 | |
| （Module weight） | KG | 0.35 | |
| （Module port） |
| HUB-HD75E (2) | |
| （Module working voltage） | VDC | 5 | |
| （Module consumption ） | W | 26 | |
| Panel Parameters | |||
| （Viewing angle） | Deg. | 140 | |
| （Option distance） | M | 3-30 | |
| （Driving device） |
| IC:2037S/2153 | |
| （Every square metre module） | PCS | 19.53 | |
| （Maximum power） | W/ M2 | 510 | |
| （Frame Frequency） | HZ/S | ≥60 | |
| （Refresh frequency） | HZ/S | ≥1920/3840 | |
| （Equilibrium brightness） | CD/ M2 | ≥5500-6500mcd | |
| （Working environment temperature） | 0C | -20~60 | |
| （Working environment humidity） | RH | 10%～70% | |
| （Display working voltage） | VAC | AC47~63HZ，220V±15%/110V±15% | |
| （Colour temperature） |
| 6500K-11500K | |
| （Gray scale/color） |
| ≥16.7M color | |
| （Input signal） |
| RF\ S-Video\ RGB etc | |
| （Control system） |
| NovaStar Linsn Coloright | |
| （Mean free error time） | HOURS | ＞5000 | |
| （Life） | HOURS | 100000 | |
| （Lamp failure frequency） |
| ＜0.0001 | |
| （Antijam） |
| IEC801 | |
| （Safety） |
| GB4793 | |
| （Resist the electricity） |
| 1500V last 1min No breakdown | |
| （IP rating） |
| The back IP40，The front IP50 | |
| （Steel box size） | mm | L640Xh640/960x960 | |
| Selling Units: | Square Meter |
|---|---|
| Package Type: | Wooden box |
| Picture Example: |
|
