| Total lamp power (Watts) | |
| Contact Now |

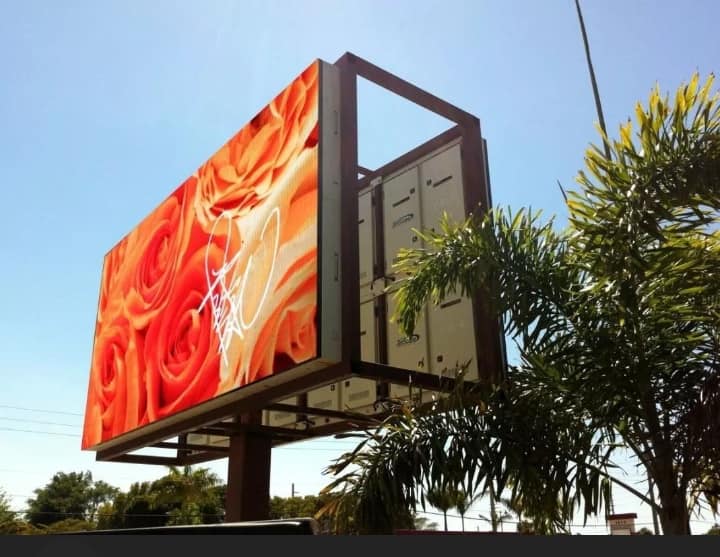

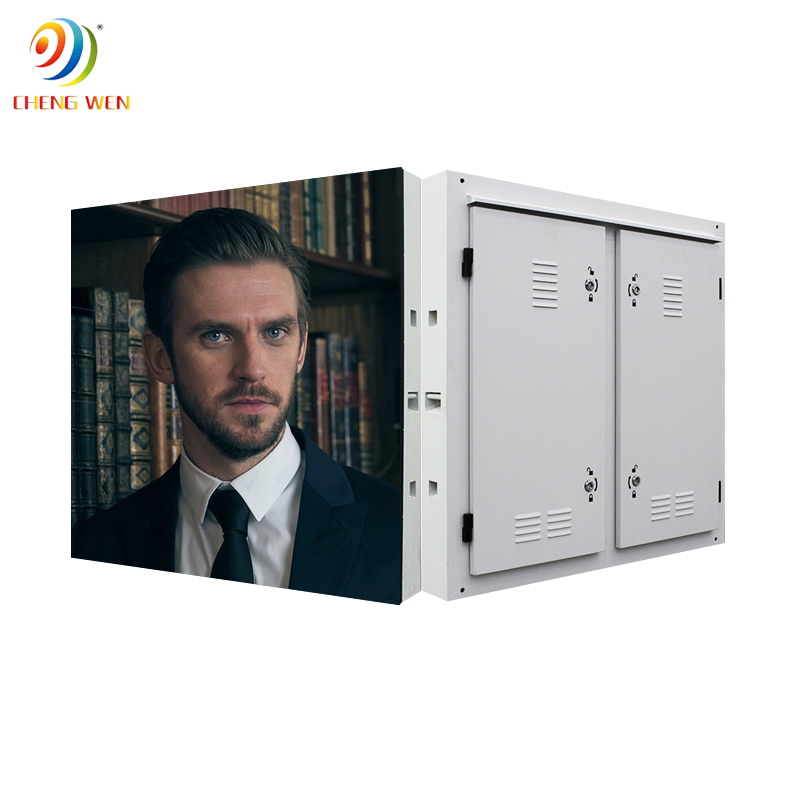

The P6 SMD Outdoor Waterproof Advertising Led Video Wall is a high-quality Led Display that is designed for outdoor use. It features a pixel pitch of 6mm, which allows for clear and detailed images and videos to be displayed even from a distance. The LED video wall is also waterproof, making it suitable for use in all weather conditions.
P6 SMD Outdoor Waterproof Advertising LED Video Wall is ideal for outdoor advertising, sports events, concerts, and other outdoor events. It can be controlled remotely, allowing for easy content management and scheduling. The LED video wall is also energy-efficient, reducing energy consumption and operating costs.P6 SMD Outdoor Waterproof Advertising LED Video Wall is a reliable and high-quality LED Display that is perfect for outdoor advertising and events. Its waterproof design, energy efficiency, and easy installation make it a great investment for any business or event organizer.
The video wall is made up of small LED modules that are assembled together to create a large display. The modules are easy to install and can be replaced individually if needed. The LED modules use SMD technology, which provides a wider viewing angle and better color reproduction than traditional LED displays.
Packing Way: Wooden Box
| MAIN TECHNICAL PARAMETERS FOR INDOOR LED DISPLAY(PITCH6) | |||
| （Technical parameters） | UNIT | （ parameters values ） | |
| （Pixel pitch） | MM | 6 | |
| （Panel size） | MM | L192*H192*T13 | |
| （Physical density） | /M2 | 27600 | |
| （Pixel configuration） | R/G/B | 1,1,1 | |
| （Driving method） |
| 1/8 Constant current 1/8scan | |
| （LED Encapsulation） | SMD | 2727 | |
| （Display resolution） | DOTS | 32*32=1024 | |
| （Module weight） | KG | 0.25 | |
| （Module port） |
| HUB-HD75 (2) | |
| （Module working voltage） | VDC | 5 | |
| （Module consumption ） | W | 22 | |
| Panel Parameters | |||
| （Viewing angle） | Deg. | 140 | |
| （Option distance） | M | 4-30 | |
| （Driving device） |
| IC:2037/2153 | |
| （Every square metre module） | PCS | 27.17 | |
| （Maximum power） | W/ M2 | 605 | |
| （Frame Frequency） | HZ/S | ≥60 | |
| （Refresh frequency） | HZ/S | ≥1920/3840HZ | |
| （Equilibrium brightness） | CD/ M2 | ≥5500-6500mcd | |
| （Working environment temperature） | 0C | -10~60 | |
| （Working environment humidity） | RH | 10%～70% | |
| （Display working voltage） | VAC | AC47~63HZ，220V±15%/110V±15% | |
| （Colour temperature） |
| 7000K-10000K | |
| （Gray scale/color） |
| ≥16.7M color | |
| （Input signal） |
| RF\ S-Video\ RGB etc | |
| （Control system） |
| NovaStar Linsn Coloright | |
| （Mean free error time） | HOURS | ＞5000 | |
| （Life） | HOURS | 100000 | |
| （Lamp failure frequency） |
| ＜0.0001 | |
| （Antijam） |
| IEC801 | |
| （Safety） |
| GB4793 | |
| （Resist the electricity） |
| 1500V last 1min No breakdown | |
| （IP rating） |
| The back IP40，The front IP65 | |
| （Steel box size） | mm | L576xh576/768x768/960x960 | |
| Selling Units: | Square Meter |
|---|---|
| Package Type: | Wooden box |
| Picture Example: |
|
| Download: |
|
