The Most HD Poster Screen for Indoor Shops Advertising. The LED Screen has a wide viewing angle of 160 degrees, which means that the content can be viewed clearly from any angle. It has a high refresh rate of 3840Hz, which ensures smooth and seamless video playback. The screen also has a high contrast ratio of 5000:1, which ensures deep blacks and bright whites.
The P1.86 Indoor Advertising Poster Led Screen is easy to install and maintain. It has a front maintenance design, which means that the modules can be easily removed and replaced without the need for a professional technician. The LED screen also has a low power consumption, which makes it energy-efficient and cost-effective.Overall, the P1.86 Indoor Advertising Poster LED Screen is a great choice for indoor advertising purposes. Its high-resolution display, wide viewing angle, and easy maintenance make it an ideal solution for businesses looking to promote their products and services in a visually appealing way.

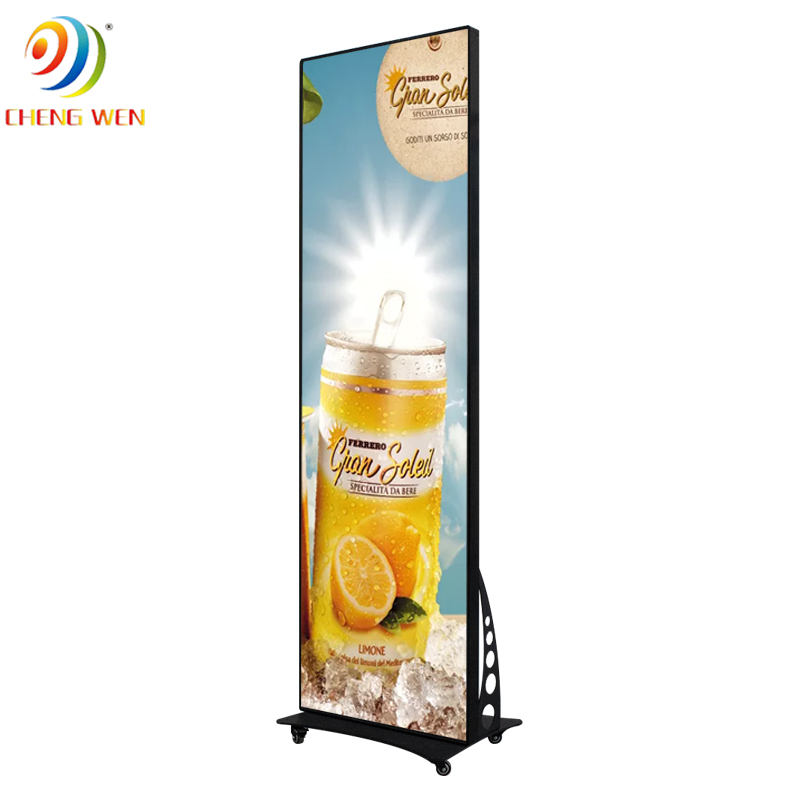

The P1.86 Indoor Advertising Poster LED Screen is a high-resolution display that is designed for indoor advertising purposes. It is a slim and lightweight Led Display that can be easily mounted on walls or placed on stands. The screen has a pixel pitch of 1.86mm, which ensures high-quality images and videos with vivid colors and sharp details.
Packing way: Flight case
| MAIN TECHNICAL PARAMETERS FOR INDOOR LED Display(PITCH1.86) | |||
| （Technical parameters） | UNIT | （ parameters values ） | |
| （Pixel pitch） | MM | 1.86 | |
| （Panel size） | MM | L320*H160*T16 | |
| （Physical density） | /M2 | 288900 | |
| （Pixel configuration） | R/G/B | 1,1,1 | |
| （Driving method） |
| 1/43 Constant current 1/43scan | |
| （LED Encapsulation） | SMD | 1515 | |
| （Display resolution） | DOTS | 172X86=14792 | |
| （Module weight） | KG | 0.45 | |
| （Module port） |
| HUB-75 | |
| （Module working voltage） | VDC | 5 | |
| （Module consumption ） | W | 21 | |
| Panel Parameter | |||
| （Viewing angle） | Deg. | 140 | |
| （Option distance） | M | 2-30 | |
| （Driving device） | IC | IC:2153 | |
| （Every square metre module） | PCS | 19.5 | |
| （Maximum power） | W/ M2 | 410 | |
| （Frame Frequency） | HZ/S | ≥60 | |
| （Refresh frequency） | HZ/S | 3200HZ | |
| （Equilibrium brightness） | CD/ M2 | 800-1000mcd | |
| （Working environment temperature） | 0C | -10~60 | |
| （Working environment humidity） | RH | 10%～70% | |
| （Display working voltage） | VAC | AC47~63HZ，220V±15%/110V±15% | |
| （Colour temperature） |
| 7000K-11500K | |
| （Gray scale/color） |
| ≥16.7M color | |
| （Input signal） |
| RF\ S-Video\ RGB etc | |
| （Control system） |
| NOvaStar Linsn Coloright | |
| （Mean free error time） | HOURS | ＞5000 | |
| （Life） | HOURS | 100000 | |
| （Lamp failure frequency） |
| ＜0.0001 | |
| （Antijam） |
| IEC801 | |
| （Safety） |
| GB4793 | |
| （Resist the electricity） |
| 1500V last 1min No breakdown | |
| （IP rating） |
| The back IP40，The front IP50 | |
| （Steel box size） | mm | L640Xh480/640X640 | |
| Selling Units: | Piece/Pieces |
|---|---|
| Package Type: | Flight case |
| Picture Example: |
|
