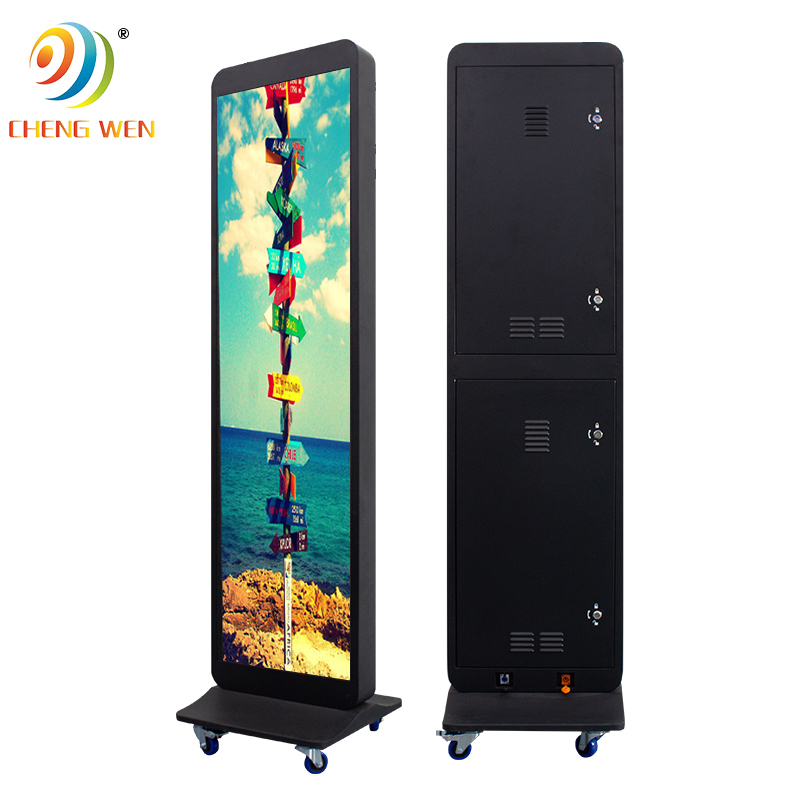

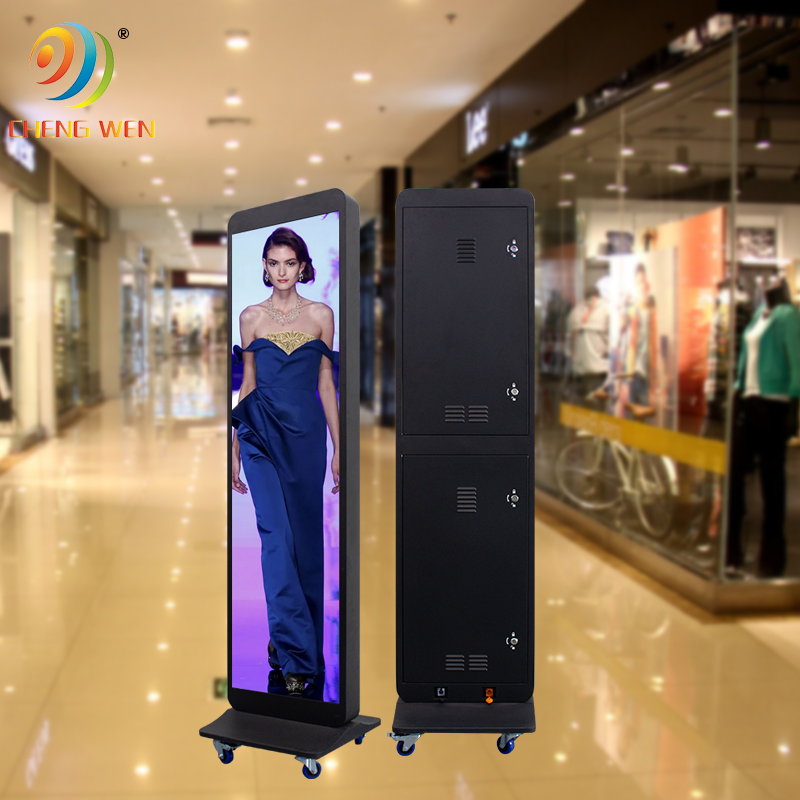

Size 640*1920mm, the P4 Outdoor Waterproof LED Poster Screen for Shops is a high-quality advertising display that is designed to withstand harsh weather conditions. This LED poster screen is perfect for shops, malls, and other outdoor locations where advertising is needed for Led Display Advertising.
The P4 Outdoor Waterproof LED Poster Screen for Shops is made of high-quality materials that are designed to withstand harsh weather conditions. The screen is waterproof and can withstand rain, snow, and other weather conditions without being damaged. This makes it perfect for outdoor advertising Full Color Led Display.
The LED poster screen has a pixel pitch of 4mm, which means that it has a high resolution and can display high-quality images and videos. The screen is also bright and can be seen even in bright sunlight, making it perfect for outdoor advertising.
The P4 Outdoor Waterproof LED Poster Screen for Shops is easy to install and can be mounted on a wall or a stand. The screen is also easy to operate and can be controlled remotely using a computer or a mobile device.
Overall, the P4 Outdoor Waterproof LED Poster Screen for Shops is an excellent advertising display that is perfect for outdoor locations. It is durable, high-quality, and easy to operate, making it an ideal choice for businesses that want to attract customers and increase sales.
Packing way:
| MAIN TECHNICAL PARAMETERS FOR INDOOR Led Display(PITCH4) | |||
| （Technical parameters） | UNIT | （ parameters values ） | |
| （Pixel pitch） | MM | 4 | |
| （Panel size） | MM | L320*H160*T17 | |
| （Physical density） | /M2 | 62500 | |
| （Pixel configuration） | R/G/B | 1,1,1 | |
| （Driving method） |
| 1/10 Constant current 1/10scan | |
| （LED Encapsulation） | SMD | 1921 White Lamp | |
| （Display resolution） | DOTS | 80*40=3200 | |
| （Module weight） | KG | 0.2 | |
| （Module port） |
| HUB-HD75 | |
| （Module working voltage） | VDC | 5 | |
| （Module consumption ） | W | 28 | |
| Panel Parameter | |||
| （Viewing angle） | Deg. | 140 | |
| （Option distance） | M | 4-30 | |
| （Driving device） |
| IC:2038S/2153 | |
| （Every square metre module） | PCS | 19.53 | |
| （Maximum power） | W/ M2 | 550 | |
| （Frame Frequency） | HZ/S | ≥60 | |
| （Refresh frequency） | HZ/S | ≥1920/3840HZ | |
| （Equilibrium brightness） | CD/ M2 | ≥5500-6500mcd | |
| （Working environment temperature） | 0C | -10~60 | |
| （Working environment humidity） | RH | 10%～70% | |
| （Display working voltage） | VAC | AC47~63HZ，220V±15%/110V±15% | |
| （Colour temperature） |
| 7000K-10000K | |
| （Gray scale/color） |
| ≥16.7M color | |
| （Input signal） |
| RF\ S-Video\ RGB etc | |
| （Control system） |
| NovaStar Linsn Coloright | |
| （Mean free error time） | HOURS | ＞5000 | |
| （Life） | HOURS | 100000 | |
| （Lamp failure frequency） |
| ＜0.0001 | |
| （Antijam） |
| IEC801 | |
| （Safety） |
| GB4793 | |
| （Resist the electricity） |
| 1500V last 1min No breakdown | |
| （IP rating） |
| The back IP40，The front IP65 | |
| （Steel box size） | mm | L640*h640/960x960 | |
| Selling Units: | Piece/Pieces |
|---|---|
| Package Type: | Flight Case |
| Picture Example: |
|
| Download: |
|
