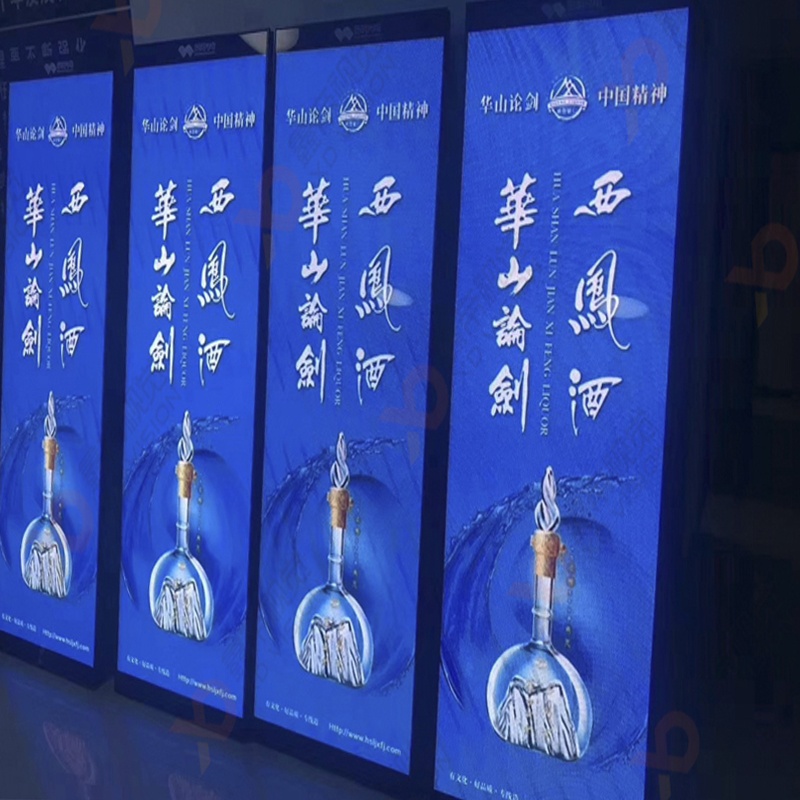

P4 indoor advertising poster LED Screen is a type of Led Display screen that is specifically designed for indoor use. It is commonly used for advertising purposes in shopping malls, airports, train stations, and other indoor public spaces.
Overall, the P4 indoor advertising poster LED screen is a powerful advertising tool that can help businesses attract customers and increase their brand visibility. Its high resolution, flexibility, and ease of use make it an ideal choice for indoor advertising in a variety of settings.

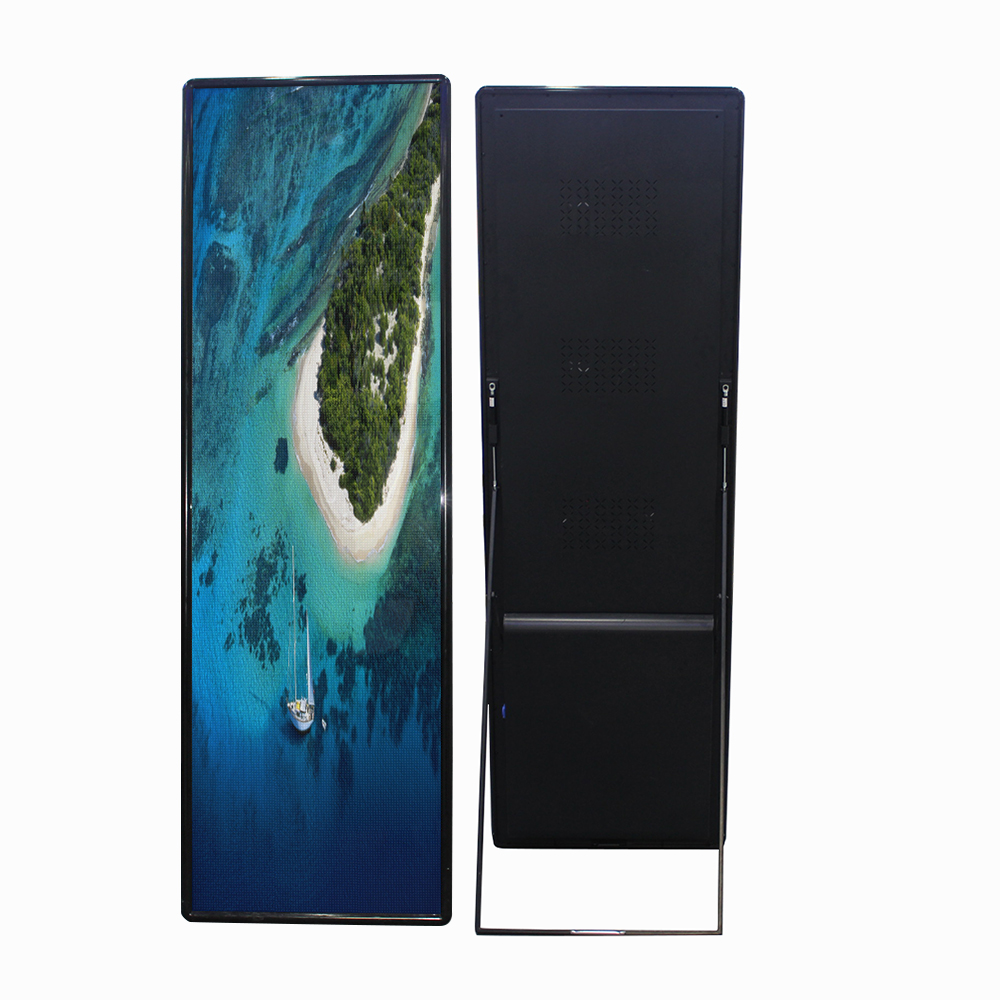

The P4 indoor advertising poster LED screen is made up of small LED modules that are arranged in a matrix pattern. These modules are typically 4mm in size, which means that the screen has a pixel pitch of 4mm. This pixel pitch is ideal for indoor use as it provides high-quality images and videos that are clear and easy to read.
Packing way: Flight case
|
MAIN TECHNICAL PARAMETERS FOR INDOOR LED Display(PITCH4) | |||
| （Technical parameters） | UNIT | （ parameters values ） | |
| （Pixel pitch） | MM | 4 | |
| （Panel size） | MM | L256*H128*T14 | |
| （Physical density） | /M2 | 62500 | |
| （Pixel configuration） | R/G/B | 1,1,1 | |
| （Driving method） |
| 1/16 Constant current 1/16scan | |
| （LED Encapsulation） | SMD | 2121 | |
| （Display resolution） | DOTS | 64X32=2048 | |
| （Module weight） | KG | 0.20 | |
| （Module port） |
| HUB75-E | |
| （Module working voltage） | VDC | 5 | |
| （Module consumption ） | W | 13 | |
| Panel Parameters | |||
| （Viewing angle） | Deg. | 140 | |
| （Option distance） | M | 4-50 | |
| （Driving device） | IC | IC:2037/2153 | |
| （Every square metre module） | PCS | 30.52 | |
| （Maximum power） | W/ M2 | 400 | |
| （Frame Frequency） | HZ/S | ≥60 | |
| （Refresh frequency） | HZ/S | ≥1920-3840hz | |
| （Equilibrium brightness） | CD/ M2 | ≥1200-1500mcd | |
| （Working environment temperature） | 0C | -20~60 | |
| （Working environment humidity） | RH | 10%～70% | |
| （Display working voltage） | VAC | AC46～54HZ，220V±15%/110V±15% | |
| （Colour temperature） |
| 8500K-11500K | |
| （Gray scale/color） |
| ≥16.7M color | |
| （Input signal） |
| RF\ S-Video\ RGB etc | |
| （Control system） |
| NOvaStar Linsn Coloright | |
| （Mean free error time） | HOURS | ＞5000 | |
| （Life） | HOURS | 100000 | |
| （Lamp failure frequency） |
| ＜0.0001 | |
| （Antijam） |
| IEC801 | |
| （Safety） |
| GB4793 | |
| （Resist the electricity） |
| 1500V last 1min No breakdown | |
| （IP rating） |
| The back IP40，The front IP50 | |
| （Steel box size） | mm | L768Xh768/512X512/604*640/960*960 | |
| Selling Units: | Piece/Pieces |
|---|---|
| Package Type: | Flight case |
| Picture Example: |
|
| Download: |
|
