| Total lamp power (Watts) | |
| Contact Now |
Useful Option of HD Poster Advertising LED Screen for Indoor Shops, The screen is also equipped with WiFi control, allowing you to easily manage and update your content remotely from your computer or mobile device. This feature saves you time and effort in manually updating your display.
Overall, the P2 Indoor Poster LED Screen with WiFi Control is a reliable and efficient solution for your indoor advertising needs.

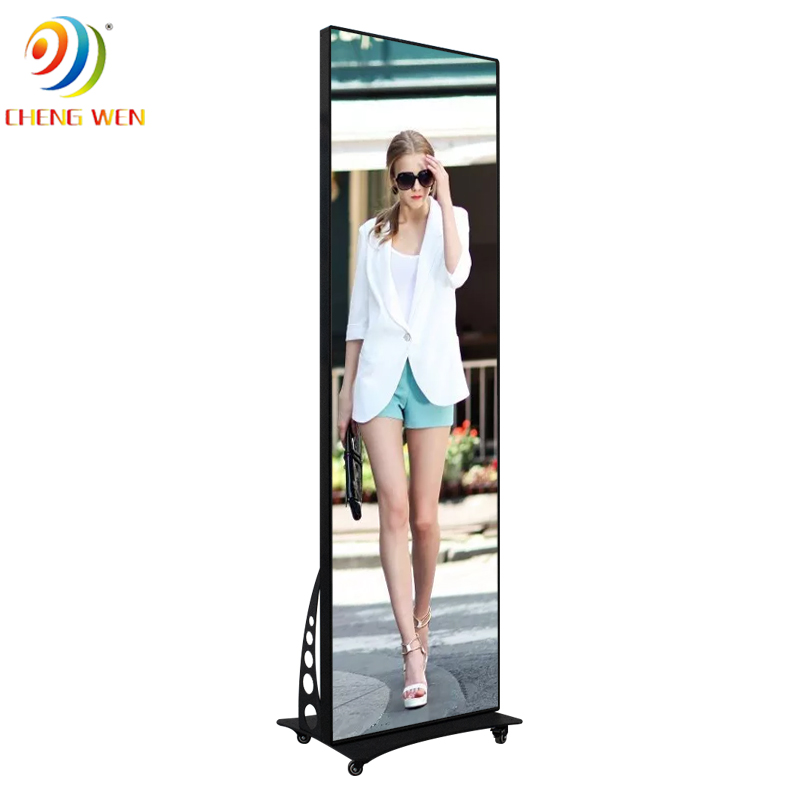

The P2 Indoor Poster LED Screen with WiFi Control is a high-quality display that is perfect for indoor advertising and promotional purposes. With its high resolution of 1920 x 1080 pixels and 2mm pixel pitch, it provides clear and vivid images and videos.
Packing way: Flight case
| MAIN TECHNICAL PARAMETERS FOR INDOOR Led Display(PITCH2) | |||
| （Technical parameters） | UNIT | （ parameters values ） | |
| （Pixel pitch） | MM | 2 | |
| （Panel size） | MM | L256*H128*T14 | |
| （Physical density） | /M2 | 250000 | |
| （Pixel configuration） | R/G/B | 1,1,1 | |
| （Driving method） |
| 1/32 Constant current 1/32scan | |
| （LED Encapsulation） | SMD | 1515 | |
| （Display resolution） | DOTS | 128X64=8192 | |
| （Module weight） | KG | 0.18 | |
| （Module port） |
| HUB75 | |
| （Module working voltage） | VDC | 5 | |
| （Module consumption ） | W | 15W | |
| Panel Parameter | |||
| （Viewing angle） | Deg. | 140 | |
| （Option distance） | M | 2-30 | |
| （Driving device） |
| IC:2037/2153 | |
| （Every square metre module） | PCS | 30.5176 | |
| （Maximum power） | W/ M2 | 450 | |
| （Frame Frequency） | HZ/S | ≥60 | |
| （Refresh frequency） | HZ/S | ≥1920/3840 | |
| （Equilibrium brightness） | CD/ M2 | 900-1200mcd | |
| （Working environment temperature） | 0C | -10~60 | |
| （Working environment humidity） | RH | 10%～70% | |
| （Display working voltage） | VAC | AC46～54HZ，220V±15%/110V±15% | |
| （Colour temperature） |
| 8500K-11500K | |
| （Gray scale/color） |
| ≥16.7M color | |
| （Input signal） |
| RF\ S-Video\ RGB etc | |
| （Control system） |
| NOvaStar Linsn Coloright | |
| （Mean free error time） | HOURS | ＞5000 | |
| （Life） | HOURS | 100000 | |
| （Lamp failure frequency） |
| ＜0.0001 | |
| （Antijam） |
| IEC801 | |
| （Safety） |
| GB4793 | |
| （Resist the electricity） |
| 1500V last 1min No breakdown | |
| （IP rating） |
| The back IP40，The front IP50 | |
| （Steel box size） | mm | L512Xh512/768X768/640X640/960X960 | |
| Selling Units: | Piece/Pieces |
|---|---|
| Package Type: | Flight case |
| Picture Example: |
|
| Download: |
|
